2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

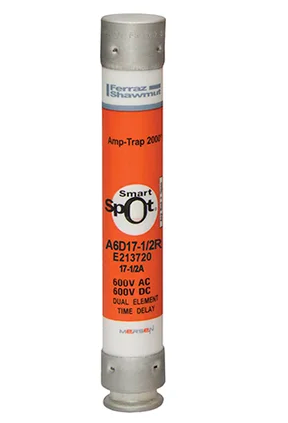

A6D17-1/2R
A6D17-1/2R is a Class RK1 time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This cartridge-style fuse features a dual-element construction and a SmartSpot visible open indicator for easy status monitoring. The A6D17-1/2R fuse is rated for 17.5 amps and 600 volts AC/DC, making it suitable for a wide range of electrical systems. It offers a high interrupting rating and is built for clip mounting, ensuring secure installation and dependable performance.
- Amperage: 17.5 A
- Voltage Rating: 600 VAC/DC
- Fuse Class: Class RK1
- Speed/Characteristic: Time Delay
- Mounting Type: Clip
- Interrupting Rating: 200 kA AC, 100 kA DC
- Series: A6D-R
- Visible Open Indicator: SmartSpot
- Approvals: UL, CSA
- Body Shape: Cylindrical
- Dimensions: 0.81" Dia x 5" L (20.57 x 127 mm)
- Terminal Type: Ferrule
Specifications
- Part Number: A6D17-1/2R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 17
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991838
- GTIN : 00782001991838
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 5
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
