Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6D15R

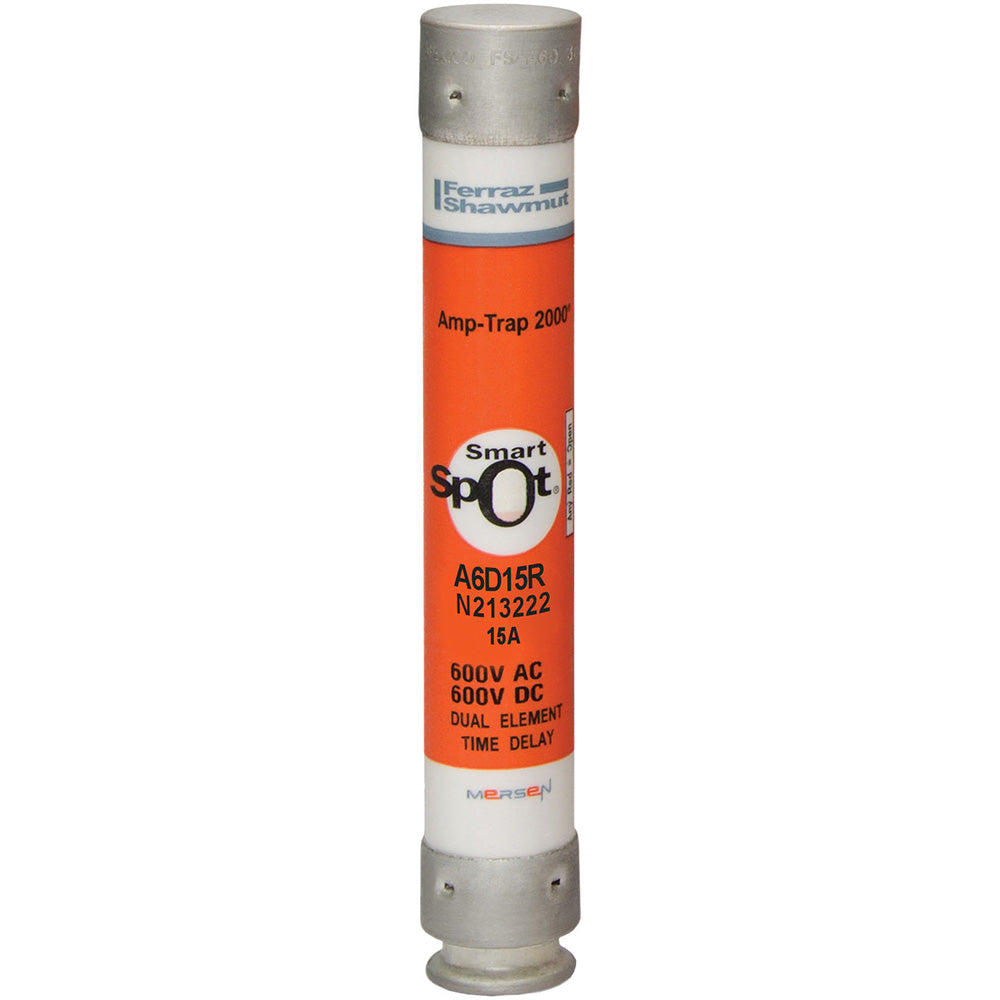

A6D15R is a 15 Amp, 600 Volt AC/DC Class RK1 time delay fuse from Mersen designed for reliable circuit protection.This fuse features a 13/16" diameter by 5" length physical size, UL Class RK1 rating, and time delay capability for current limiting and arc flash mitigation. It has an AC interrupting rating of 200,000 AIC and DC interrupting rating of 100,000 AIC. The fuse includes a Smart Spot blown fuse indicator and a rejection style design to prevent replacement errors. It is UL listed to standard 248-12 and CSA certified to C22.2 No. 248.12.
- Key Specifications
- Amperage: 15 Amp
- Voltage Rating: 600 Volt AC/DC
- Class: RK1
- Time Delay: Yes
- Physical Size: 13/16" diameter x 5" length
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- Smart Spot blown fuse indicator
- Rejection style design to prevent replacement errors
- UL Listed to Standard 248-12
- CSA Certified to Standard C22.2 No. 248.12
- Part Number: A6D15R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
- UPC : 782001991821
- GTIN : 00782001991821
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 5
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
Specifications
