- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

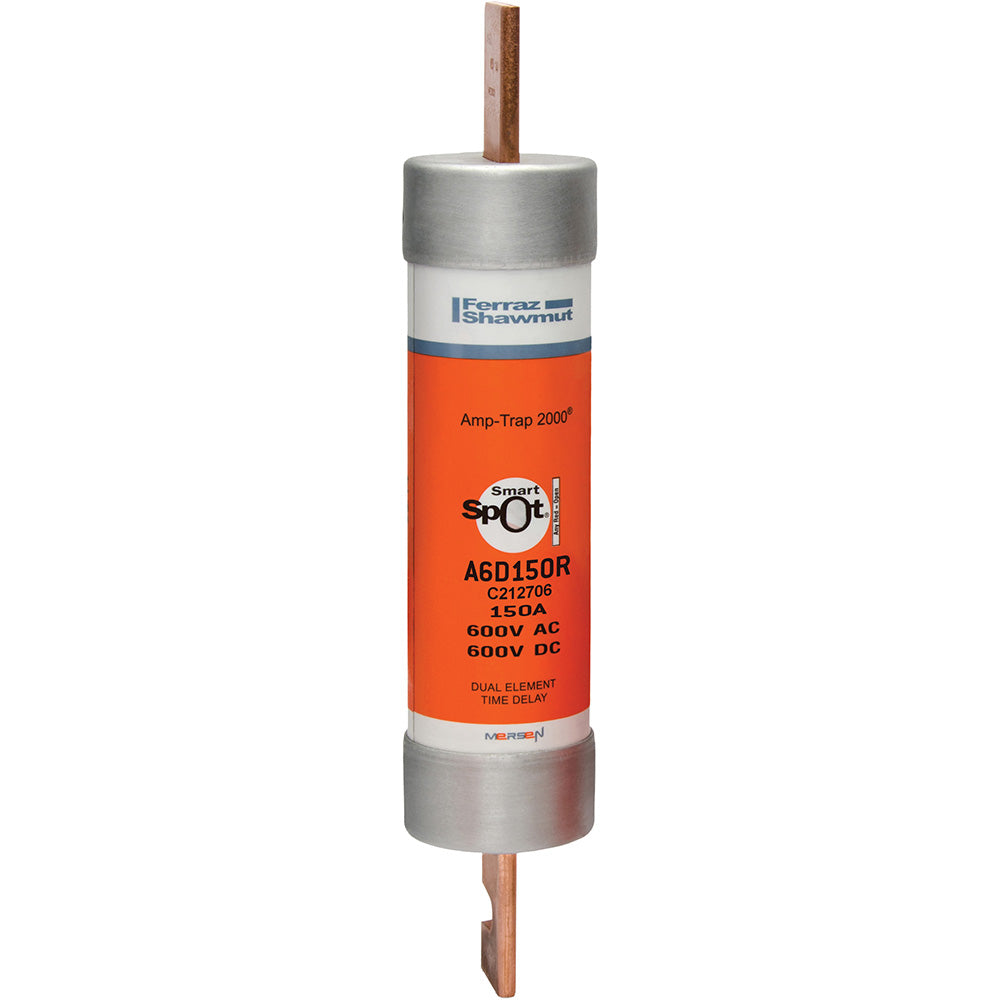

A6D150R
A6D150R is a 150 Amp, 600 Volt Class RK1 time delay fuse from Mersen designed for reliable circuit protection.This fuse features Amp-Trap 2000 technology providing IEC Type 2 no damage protection for mains, feeders, and branch circuits serving motor loads. It is current limiting with a time delay characteristic, suitable for AC and DC applications, and offers arc flash mitigation. The fuse is UL 248/248-12 and CSA C22.2 certified with a 200 kiloamp interrupt rating.
- Key Specifications
- Amperage: 150 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: RK1
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA
- Dimensions: 1 13/16" diameter x 9 5/8" length
- Mounting Type: Blade
- Certifications: UL 248/248-12, CSA C22.2
- Technology: Amp-Trap 2000
- Arc Flash Mitigating
- ROHS Compliant
- Part Number: A6D150R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Diameter : 1.81
- Class Rating : RK1
- Barrels : 1
- UPC : 782001992163
- GTIN : 00782001992163
- Country of Origin : Mexico
- Dimensions : x 9-5/8 in x
- Weight : 2
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
