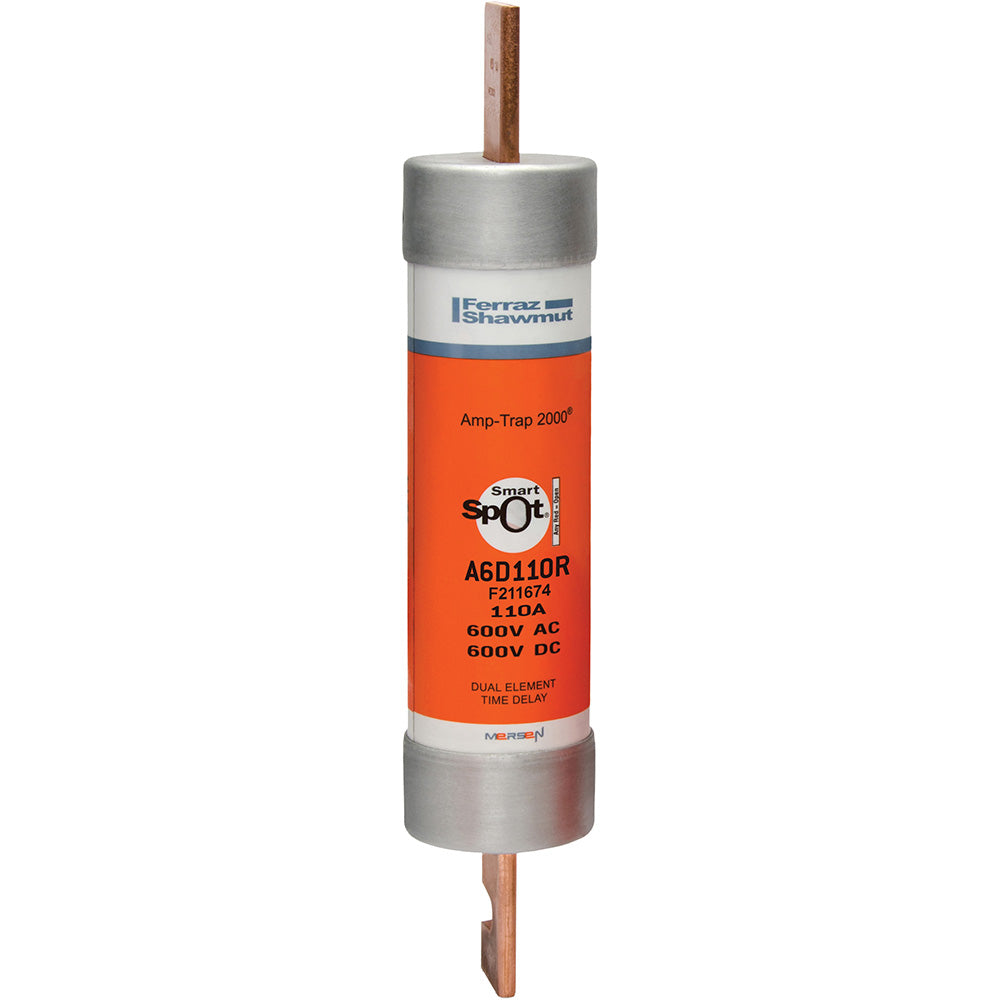

A6D110R - Mersen 110A 600V Class RK1 Time Delay Fuse with SmartSpot

A6D110R

A6D110R is a 110 Amp, 600 Volt AC/DC Class RK1 time delay fuse from Mersen featuring SmartSpot indication.This fuse offers reliable circuit protection with a 200,000 AIC interrupt rating for AC and 100,000 AIC for DC. It is designed for use in motor circuits, safety switches, transformers, and general-purpose applications. The fuse has a clip mounting type and a PolyTube insulating body. It is UL listed to standard 248-12, DC listed to UL 248, and CSA certified to C22.2 No. 248.12. The SmartSpot indicator provides visual confirmation of fuse status to reduce downtime.

Key Specifications
• Amperage: 110 A
• Voltage Rating: 600 V AC/DC
• Fuse Class: RK1
• Time Delay Characteristic
• Interrupt Rating: 200 kA AC / 100 kA DC
• Mounting Type: Clip
• Body Material: PolyTube
• Indicator: SmartSpot
• UL Listed (File E2137), DC Listed, CSA Certified
• Physical Size: 1 13/16" diameter x 9 5/8" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A6D110R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A6D-R
• Voltage : 600
• Amperage : 110
• AIC rating : 200kA@600V
• Diameter : 1.81
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 078200199214
• GTIN : 00782001992149
• Country of Origin : Mexico
• Dimensions : x 9-5/8 in x
• Weight : 1
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
