Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

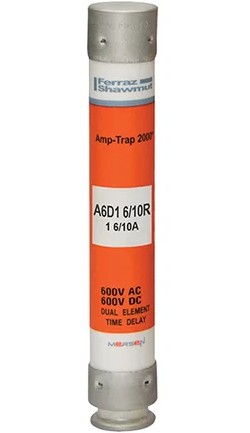

A6D1-6/10R
A6D1-6/10R is a Mersen Class RK1 time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This cartridge-style fuse features a 1.6A current rating, dual 600VAC and 600VDC voltage rating, and a 200kA interrupt rating for maximum safety and performance. The Amp-Trap 2000® series provides IEC Type 2 "no damage" protection for mains, feeders, and branch circuits, making it ideal for motor and non-motor loads. Its time-delay design prevents nuisance tripping during motor inrush currents while offering fast fault clearing under extreme conditions. The fuse is constructed with a fiberglass body for dimensional stability in harsh environments and features a high-visibility orange label for easy identification. It is compatible with recommended fuse blocks for secure mounting and replacement error prevention. This Mersen A6D1-6/10R fuse is engineered for arc flash energy reduction and branch circuit protection, with a rejection-style design to prevent incorrect replacements. It can replace older Class H, K, and RK5 fuses, simplifying inventory management. The fuse is self-certified with UL-witnessed tests and includes a metal-embossed date and catalog number for traceability.
- Part Number: A6D1-6/10R
- Manufacturer: Mersen
- Series: Amp-Trap 2000®
- Fuse Type: Class RK1
- Current Rating: 1.6A
- Voltage Rating: 600VAC, 600VDC
- Interrupt Rating: 200kA at 600VAC, 100kA at 600VDC
- Response Time: Time-Delay
- Body Material: Fiberglass
- Mounting Type: Cartridge (Ferrule)
- Certifications: UL, IEC Type 2
- Protection Type: Arc Flash Mitigating, Branch Circuit, Mains, Feeders
Specifications
- Part Number: A6D1-6/10R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991623
- GTIN : 00782001991623
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 0.14
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
