Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

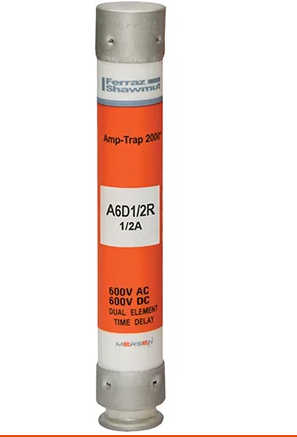

A6D1/2R
A6D1/2R is a Mersen Class RK1 time-delay fuse designed for reliable protection in motor and non-motor branch circuits. This fuse provides time-delay characteristics to handle motor in-rush currents and transformer inrush without nuisance tripping, while offering fast opening under extreme fault conditions for maximum short circuit protection. The A6D1/2R fuse is dual-rated for 600V AC and 600V DC, making it suitable for a wide range of industrial and commercial applications. It features a cylindrical body style and is non-indicating, ensuring compatibility with existing fuse holders. This fuse is part of the Amp-Trap 2000® series and is engineered for high interrupting capacity and current-limiting performance.
- Amperage: 0.5A
- Voltage Rating: 600V AC, 600V DC
- Fuse Class: Class RK1
- Speed/Characteristic: Time Delay
- Interrupting Rating: 200kA
- Series: Amp-Trap 2000®
- Body Style: Cylindrical
- Visual Indication: Non-Indicating
- Frequency: 50/60 Hz
- AC/DC: AC and DC
Specifications
- Part Number: A6D1/2R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991555
- GTIN : 00782001991555
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 5.19
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
