Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A6D1-1/8R

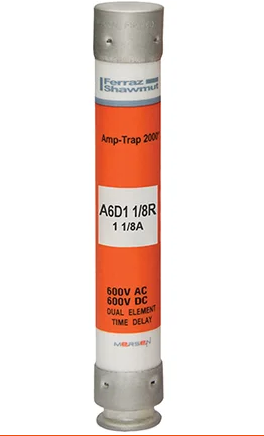

A6D1-1/8R is a 1.125 amp, 600 volt AC/DC Class RK1 time-delay fuse designed for motor and general-purpose circuit protection.This Eaton (Mersen) A6D1-1/8R fuse features Amp-Trap 2000® technology providing IEC Type 2 no damage protection. It offers fast interruption under extreme fault conditions to protect motor starters, switches, and other circuit components while allowing time-delay for motor inrush currents. The fuse has a cylindrical cartridge shape with ferrule terminals and tin-plated copper connections. It is UL and CSA certified and suitable for use in mains, feeders, branch circuits, safety switches, transformers, disconnects, and control panels.
- Amperage: 1.125 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: RK1
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200,000 AIC (AC)
- Mounting Type: Clip
- Connection Type: Ferrule, Tin-Plated Copper
- Dimensions: 0.81 in diameter x 5 in length
- Body Material: PolyTube
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: A6D1-1/8R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991593
- GTIN : 00782001991593
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 25
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
