2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

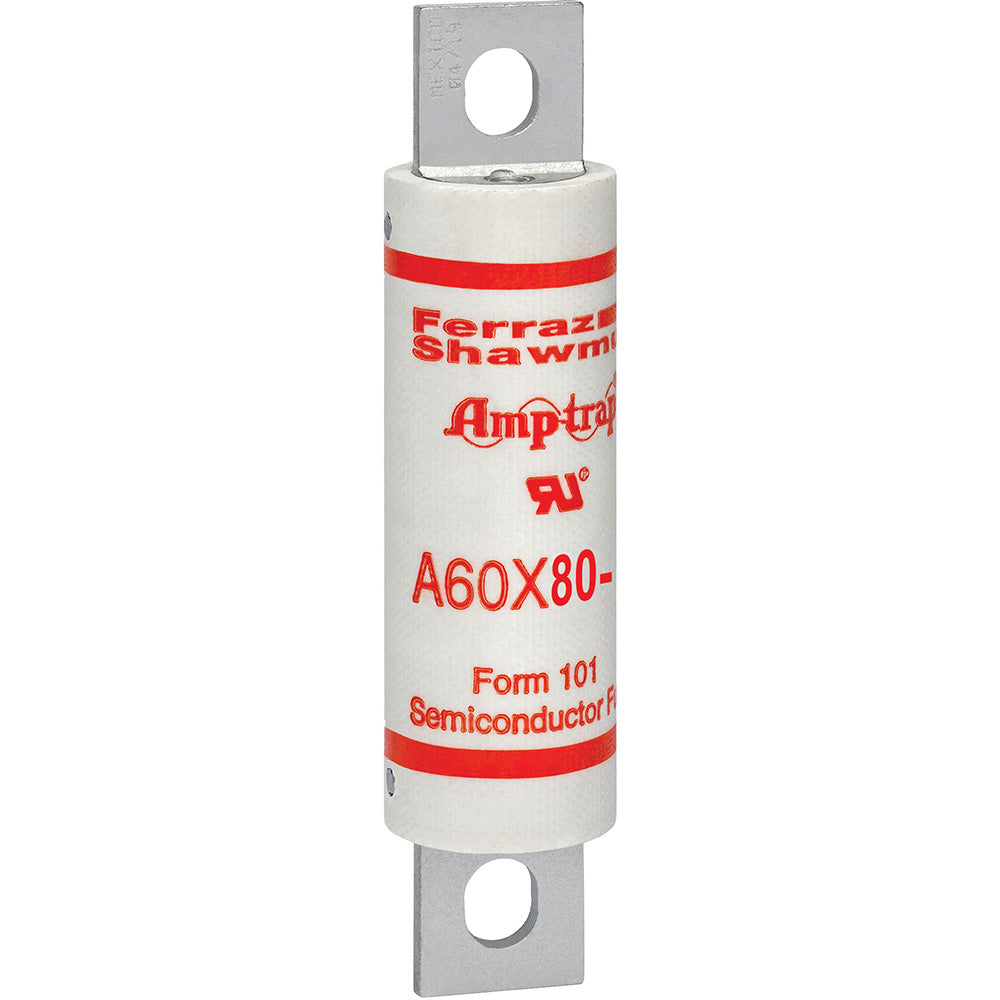

A60X80-4
A60X80-4 is a high speed semiconductor fuse from Eaton designed for 80 amp, 600 volt AC applications with bolted mounting.This Eaton Amp-Trap® A60X series fuse provides fast-acting, current-limiting protection for semiconductor devices. It features a bolted blade mounting type, a 600V AC voltage rating, and an interrupt rating of 100,000 AIC. The fuse body is fiberglass with a 1 inch diameter and approximately 4.4 inch length. It is designed for industrial power protection applications requiring reliable high speed fuse performance.
- Amperage: 80A
- Voltage Rating: 600V AC
- Mounting Type: Bolted Blade
- Fuse Type: Semiconductor High Speed
- Interrupt Rating: 100,000 AIC
- Body Material: Fiberglass
- Diameter: 1 inch
- Length: Approx. 4.4 inches
- Series: Amp-Trap® A60X
- Frequency: 50/60 Hz
- Certifications: UL Listed
Specifications
- Part Number: A60X80-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A60X
- Voltage : 600
- Amperage : 80
- AIC rating : 100kA@600V
- Diameter : 1
- Barrels : 1
Product Data
- UPC : 078200194321
- GTIN : 00782001943219
- Country of Origin : Mexico
- Dimensions : x 4.41 in x
- Weight : 0.3
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
