Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

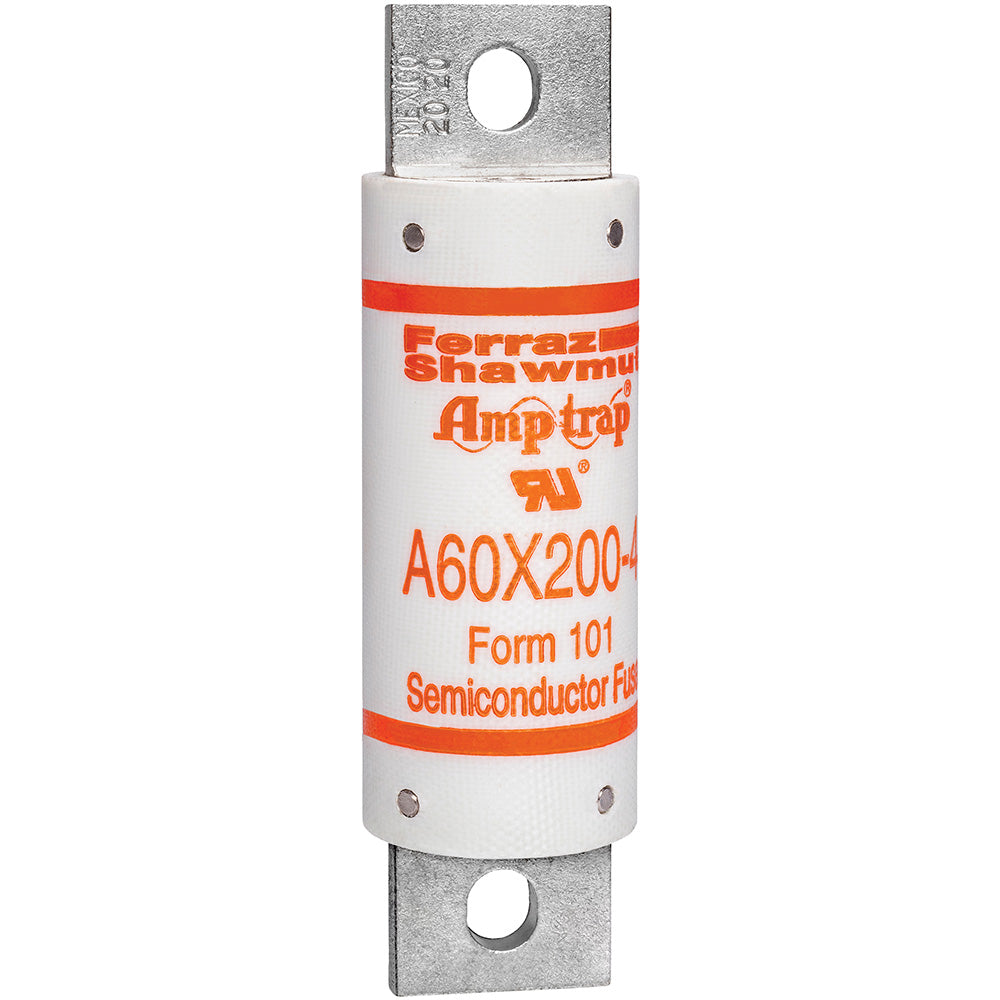

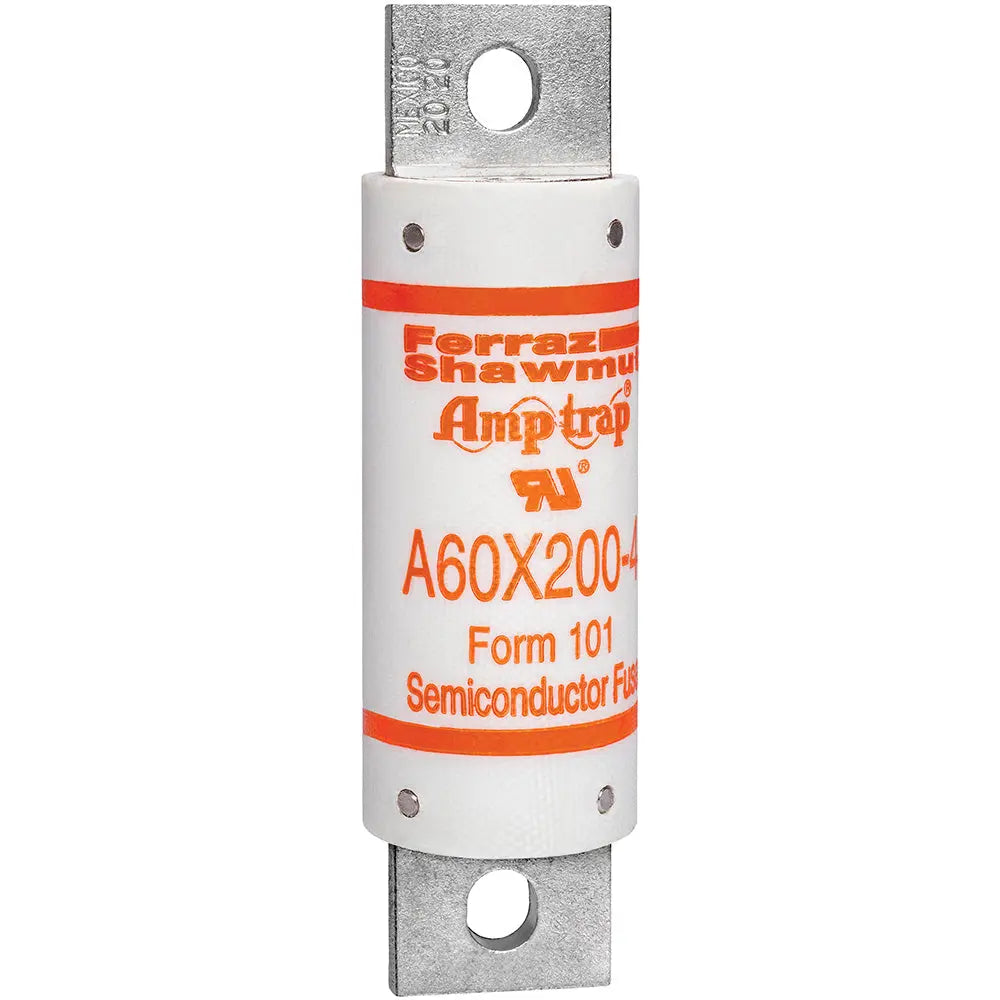

A60X200-4
A60X200-4 is a 200 Amp, 600 Volt AC semiconductor fuse designed for fast acting, current limiting protection.This Eaton semiconductor fuse features a bolted blade mounting type and is part of the A60X series. It provides high-speed interruption with a 100,000 AIC interrupt rating, suitable for protecting heavy-duty apparatus such as rectifiers and traction equipment. The fuse minimizes stress and damage to circuit components during short circuits and sustained overloads. It is UL recognized under file E60314 and meets UL guide JFHR2 for AC voltage ratings from 35 to 800 Amps.
- Key Specifications
- Amperage: 200 Amps
- Voltage Rating: 600 Volts AC
- Poles: 1 Pole
- Mounting Type: Bolted Blade
- Interrupt Rating: 100,000 AIC
- Series/Frame: A60X
- Fuse Type: Semiconductor, Fast Acting
- UL Recognized Component (UL File E60314)
- Physical Size: 1.22" diameter x 4.41" length
- Application: Protection of heavy traction, electrochemical, and rectifier equipment
- Part Number: A60X200-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A60X
- Voltage : 600
- Amperage : 200
- AIC rating : 100kA@600V
- Diameter : 1.22
- Barrels : 1
- UPC : 782001943318
- GTIN : 00782001943318
- Country of Origin : Mexico
- Dimensions : x 4.41 in x
- Weight : 1
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
