2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

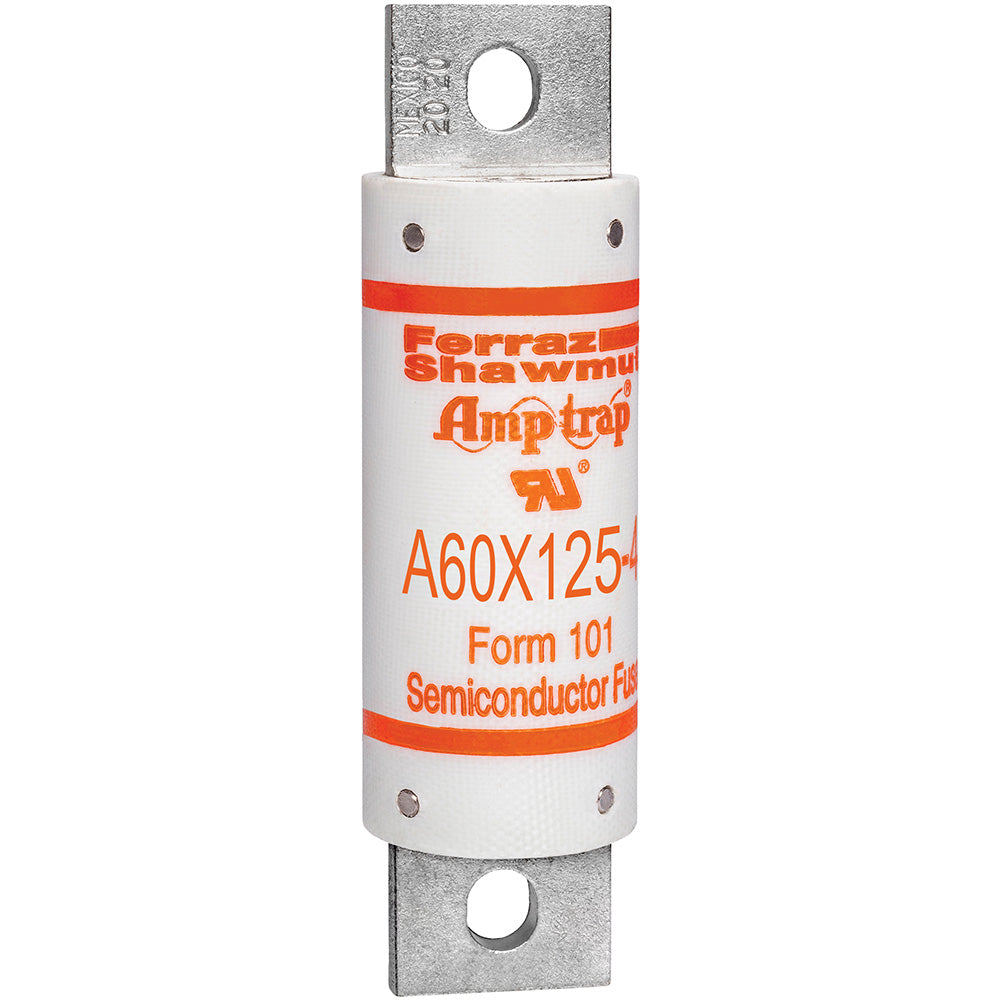

A60X125-4
A60X125-4 is a high-speed semiconductor blade fuse designed for heavy-duty protection in industrial power systems. This Ferraz Shawmut A60X series fuse provides fast-acting, current-limiting protection for sensitive semiconductor equipment such as rectifiers and drives. It features a robust bolted blade mounting and is rated for 600VAC operation. The A60X125-4 is engineered for reliability in demanding environments, offering high interrupting capacity and fast response to overcurrent events. Its compact design and proven performance make it ideal for use in traction rectifiers, UPS systems, and other high-voltage applications.
- Part Number: A60X125-4
- Manufacturer: Ferraz Shawmut
- Amperage: 125A
- Voltage Rating: 600VAC
- Mounting Type: Bolted Blade (Type 4)
- Interrupt Rating: 100,000A (AC)
- Series/Frame: A60X Amp-Trap Form 101
- Response Type: Fast Acting
- Current Limiting: Yes
- Application: Semiconductor Protection
- Physical Size: 1.22" Diameter x 4.41" Length
- Certification: UL E60314
Specifications
- Part Number: A60X125-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A60X
- Voltage : 600
- Amperage : 125
- AIC rating : 100kA@600V
- Diameter : 1.22
- Barrels : 1
Product Data
- UPC : 078200194476
- GTIN : 00782001944766
- Weight : 1
