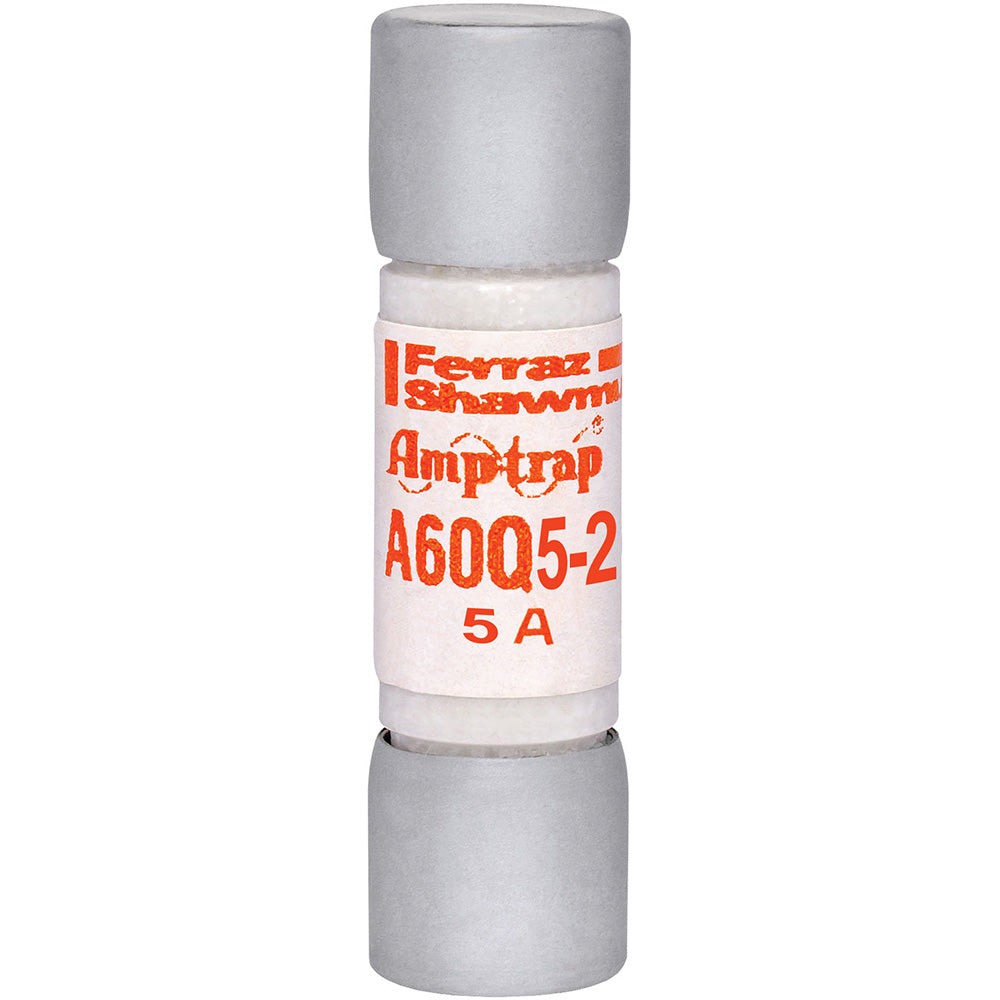

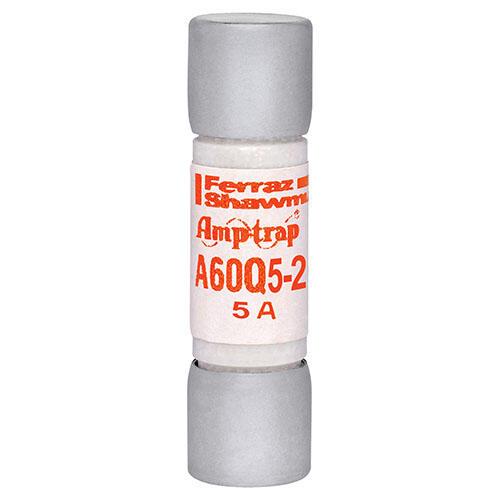

A60Q5-2 - Ferraz Shawmut 5A 600V AC/DC High Speed Semiconductor Fuse, Ferrule Terminal

A60Q5-2

A60Q5-2 is a high speed semiconductor fuse by Ferraz Shawmut designed for 5 ampere current and 600 volts AC/DC applications.This A60Q Amp-Trap® Form 101 fuse features extremely fast acting characteristics with a ferrule terminal type, providing excellent cycling ability and current limiting protection for semiconductors. It is UL recognized and rated for 600 V AC and DC with a 100 kA interrupting rating for DC and up to 200 kA for AC. The compact size is 1-1/2 inch length by 13/32 inch diameter, ideal for protecting inverters, drives, and other sensitive equipment requiring rapid fault response.

Key Specifications
• Amperage: 5 A
• Voltage Rating: 600 V AC/DC
• Fuse Type: High Speed Semiconductor
• Mounting Type: Ferrule Terminal
• Interrupting Rating: 100 kA DC, 200 kA AC
• Size: 1-1/2" length x 13/32" diameter
• Series: A60Q Amp-Trap® Form 101
• UL Recognized Component
• Current Limiting
• Extremely Fast Acting
• RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A60Q5-2
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A60Q
• Voltage : 600
• Amperage : 5
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Barrels : 1



Product Data

• UPC : 78200194907
• GTIN : 00782001949075
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : CE, UL Recognized, Guide JFHR2, File E60314
