A60Q30-2 - Ferraz Shawmut 30A 600V AC/DC Semiconductor Fuse, Extremely Fast Acting, Current Limiting, Amp-Trap Form 101, UL Recognized

A60Q30-2

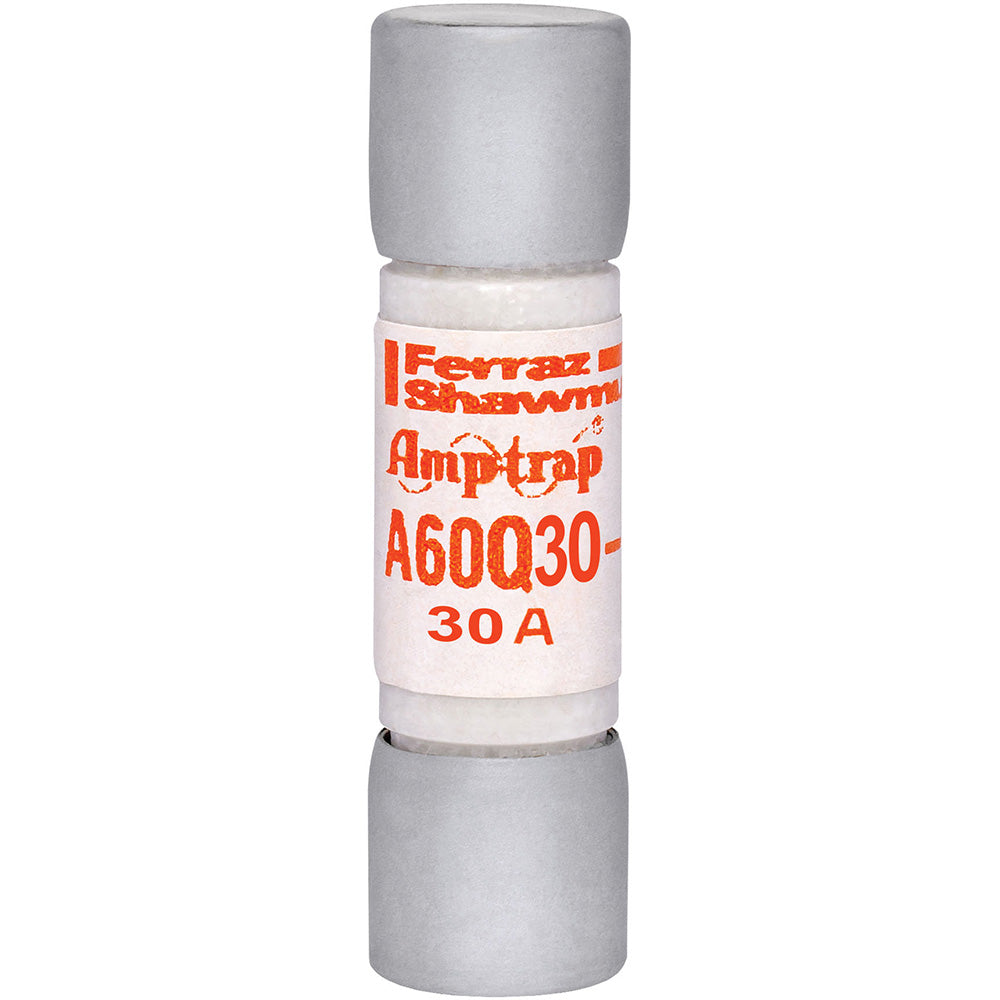

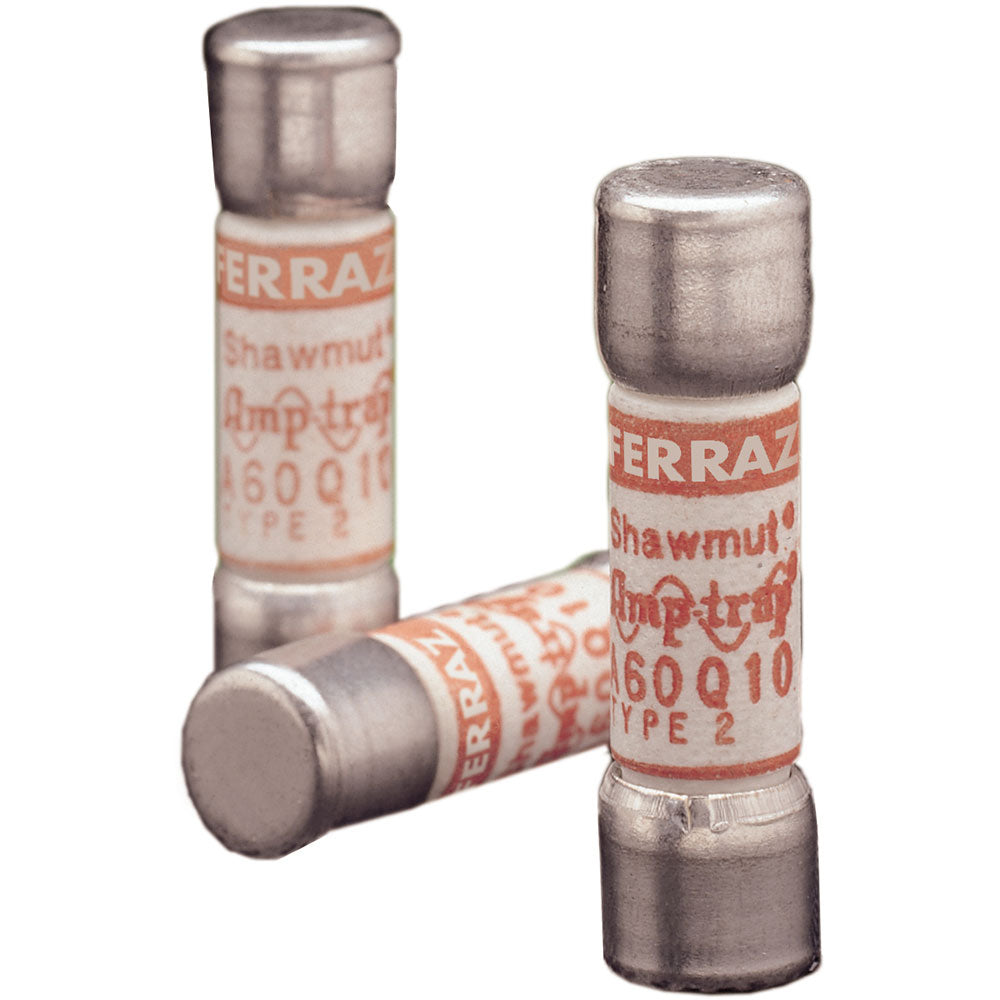

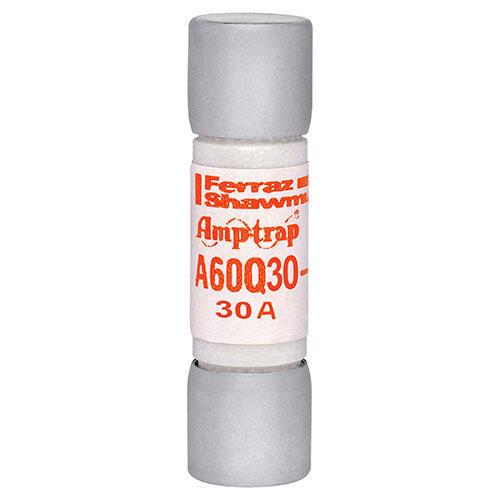

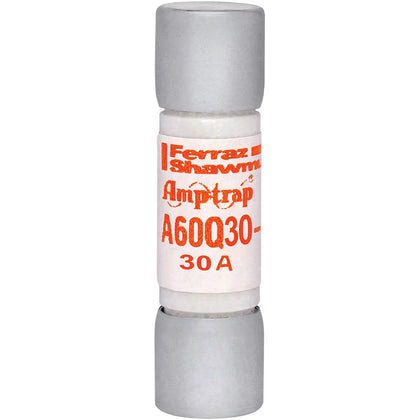

A60Q30-2 is a Ferraz Shawmut semiconductor protection fuse designed for extremely fast-acting, current-limiting circuit protection in demanding applications.

This fuse is rated for 30 amps at 600 volts AC or DC, making it ideal for protecting sensitive semiconductor devices in inverters, drives, and equipment requiring the highest degree of protection. It features a compact, single-barrel design (13/32" x 1-1/2"), the lowest I²t of any fuse in its class, and excellent cycling ability for reliable performance in high-stress environments.

Key Specifications
• Amperage: 30A
• Voltage: 600V AC/DC
• Poles: Single
• Mounting Type: Cartridge (midget fuse)
• Interrupt Rating: 200,000A AC / 100,000A DC
• Series/Frame: Amp-Trap Form 101
• Trip Unit: Extremely fast acting, current limiting
• Certifications: UL Recognized Component (AC: UL Guide JFHR2 File E60314, DC: UL File E60314)
• Physical Size: 13/32" x 1-1/2" (10.32 x 38.1mm)
• Application: Protection of small inverters, drives, and equipment requiring fast fault response
• Equivalent to Bussmann FWC style
• Excellent cycling ability

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A60Q30-2
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A60Q
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 078200194886
• GTIN : 00782001948863
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : CE, UL Recognized, Guide JFHR2, File E60314
