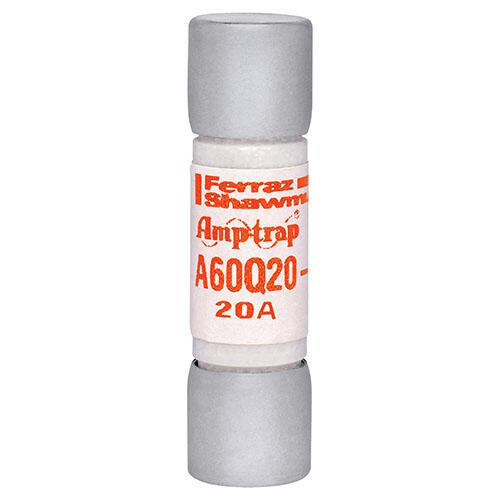

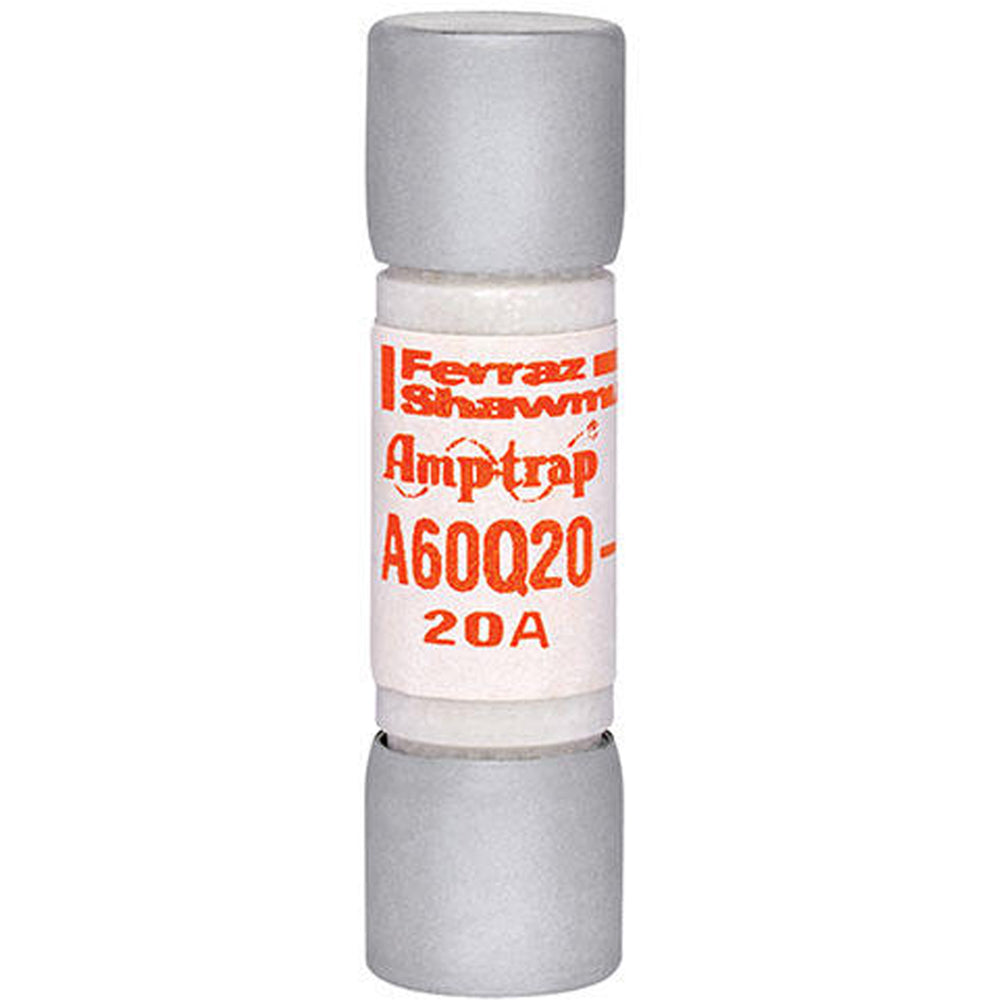

A60Q20-2 - Ferraz Shawmut 20A 600V AC/DC Semiconductor Fuse, Extremely Fast Acting, Current Limiting, UL Recognized, Amp-Trap® Form 101

A60Q20-2

A60Q20-2 is a Ferraz Shawmut semiconductor protection fuse designed for extremely fast-acting, current-limiting circuit protection in demanding applications.

This fuse offers a 20A current rating, 600V AC/DC voltage rating, and is part of the Amp-Trap® Form 101 series. It features the lowest I²t of any fuse in its size class, excellent cycling ability, and is ideal for protecting inverters, drives, and equipment requiring the highest degree of protection against fault currents. The A60Q20-2 is UL recognized and provides reliable performance in both AC and DC circuits.

Key Specifications
• Part Number: A60Q20-2
• Manufacturer: Ferraz Shawmut (Mersen)
• Amperage: 20A
• Voltage: 600V AC/DC
• Poles: 1
• Mounting Type: Ferrule (cartridge)
• Interrupt Rating: 200,000A AC / 100,000A DC
• Series/Frame: Amp-Trap® Form 101
• Trip Unit: Extremely fast acting, current limiting
• Certifications: UL Recognized Component (AC: UL guide JFHR2 File E60314; DC: UL file E60314)
• Physical Size: 13/32" x 1-1/2"
• Application: Protection of semiconductors, small inverters, drives, and sensitive equipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A60Q20-2
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A60Q
• Voltage : 600
• Amperage : 20
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 078200194896
• GTIN : 00782001948962
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : CE, UL Recognized, Guide JFHR2, File E60314
