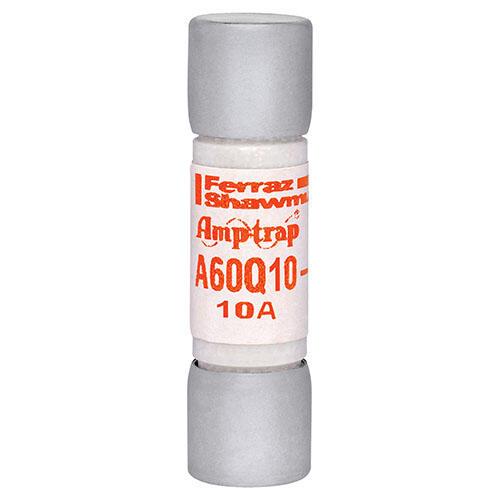

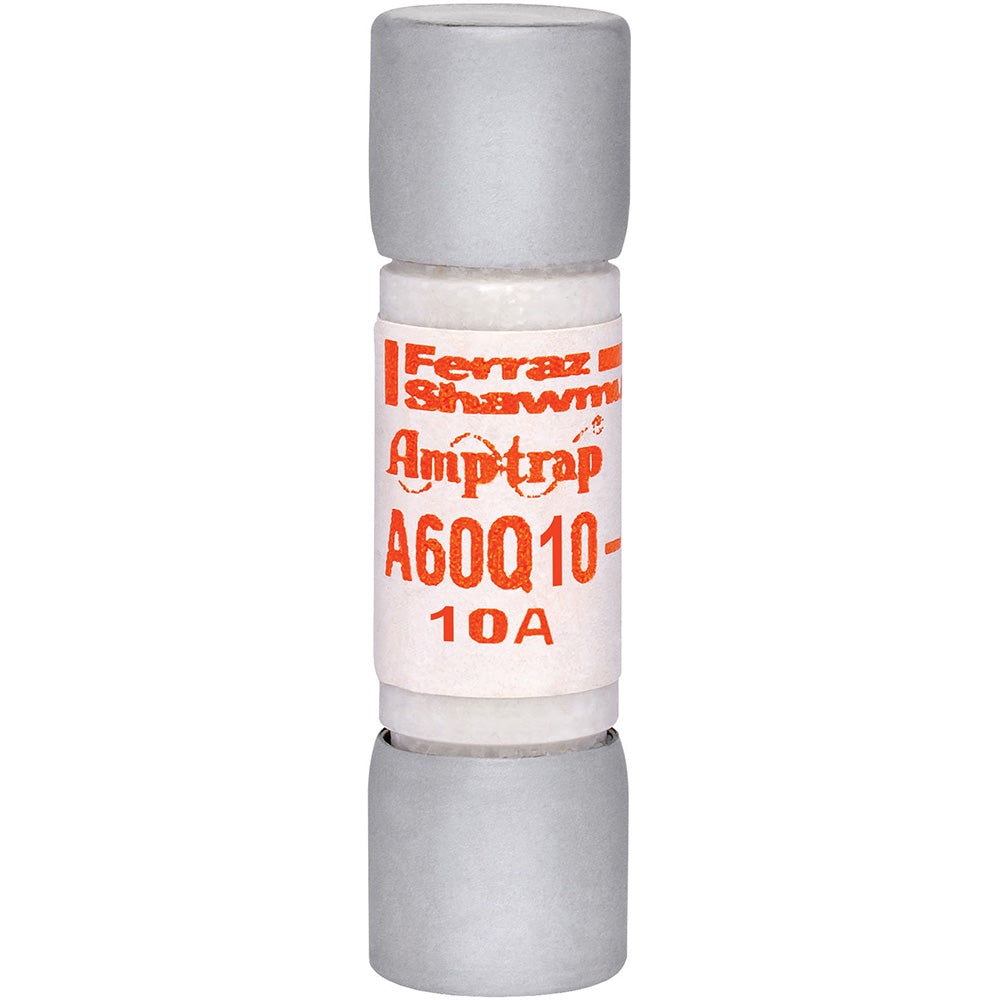

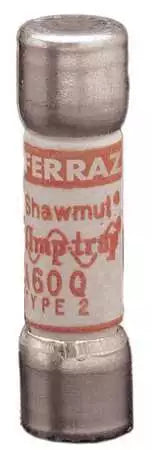

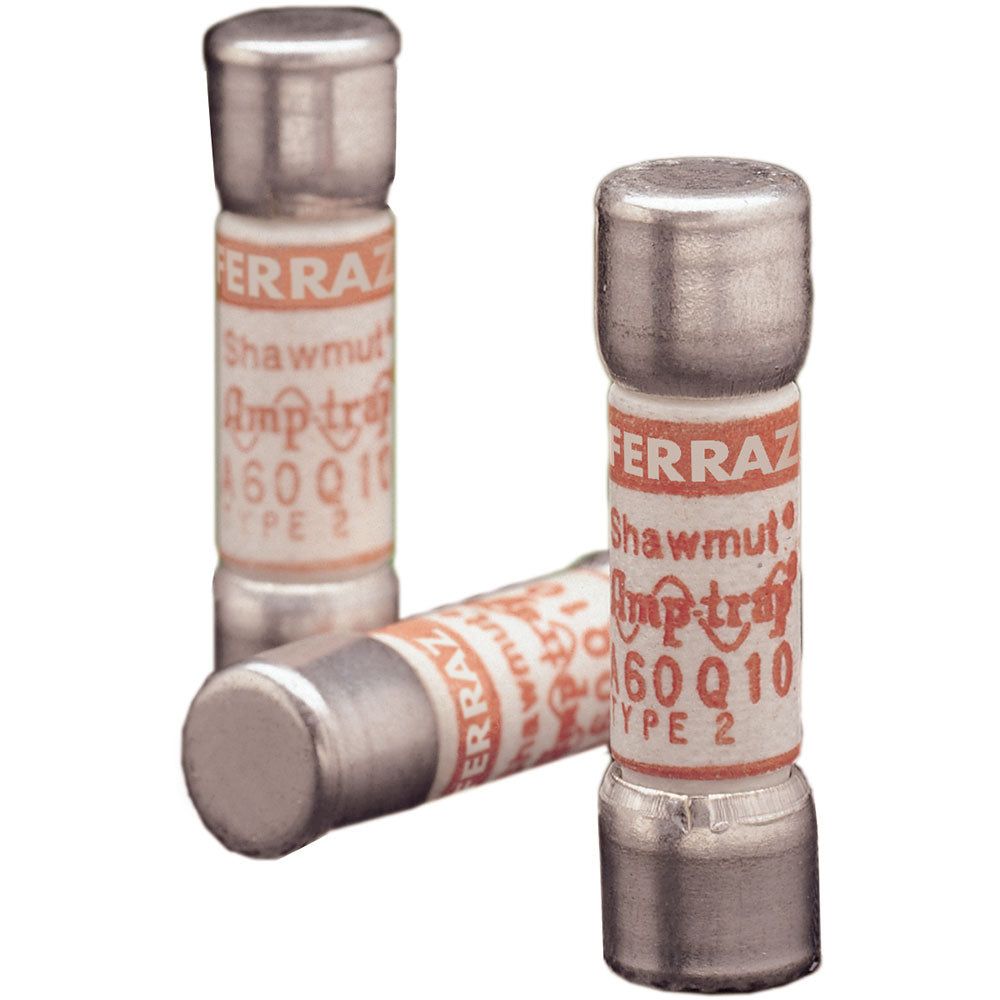

A60Q10-2 - Ferraz Shawmut 10A 600V Semiconductor Fast Acting Fuse, 200kA AC Interrupt, 100kA DC Interrupt

A60Q10-2

A60Q10-2 is a 10 Amp, 600 Volt semiconductor fuse designed for extremely fast acting protection.This Ferraz Shawmut A60Q10-2 fuse features a current limiting design with a 200,000 AIC AC and 100,000 AIC DC interrupt rating. It measures 13/32" diameter by 1 1/2" length and is UL recognized for both AC and DC applications. Ideal for protecting small inverters, drives, and equipment requiring the highest degree of semiconductor protection, it offers excellent cycling ability and the industry's lowest I2t for its size.

Key Specifications
• Amperage: 10 A
• Voltage Rating: 600 V AC/DC
• Fuse Type: Semiconductor
• Interrupting Rating: 200,000 AIC AC, 100,000 AIC DC
• Physical Size: 13/32" x 1 1/2"
• Mounting Type: Form 101 Amp-Trap®
• Fast Acting, Current Limiting
• UL Recognized Component (AC: Guide JFHR2, File E60314; DC: File E60314)
• Excellent Cycling Ability
• Equivalent to Bussmann FWC Style

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A60Q10-2
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A60Q
• Voltage : 600
• Amperage : 10
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 78200194905
• GTIN : 00782001949051
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : CE, UL Recognized, Guide JFHR2, File E60314
