Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage
Description
A550X125E-1

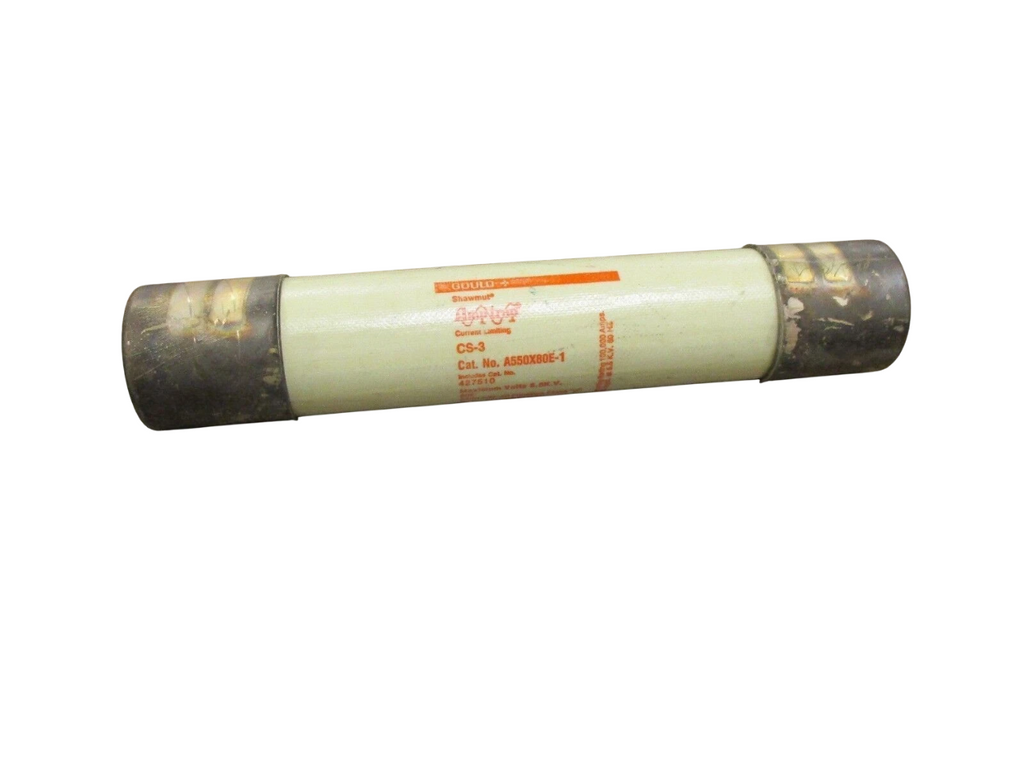

A550X125E-1 is a Mersen medium voltage fuse designed for power distribution and transformer protection applications. This CS-3 Series fuse features a single-barrel ferrule connection design rated for 5.5kV systems with a 125A amperage rating and 63kA interrupting capacity. The fuse is engineered to limit fault currents and coordinate with protective devices in medium voltage circuits. Key Specifications
- Part Number: A550X125E-1
- Manufacturer: Mersen (Ferraz Shawmut)
- Voltage Rating: 5.5kV AC
- Amperage Rating: 125A
- Interrupting Rating: 63kA RMS Symmetrical
- Series: CS-3
- Connection Type: Ferrule Mount
- Barrel Configuration: Single-barrel
- Current-Limiting: Yes
- UL Listed: Yes
Specifications
- Part Number: A550X125E-1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CS-3 Series
- Type : A055
- Voltage : 5500
- Amperage : 125
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- Weight : 5
