Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

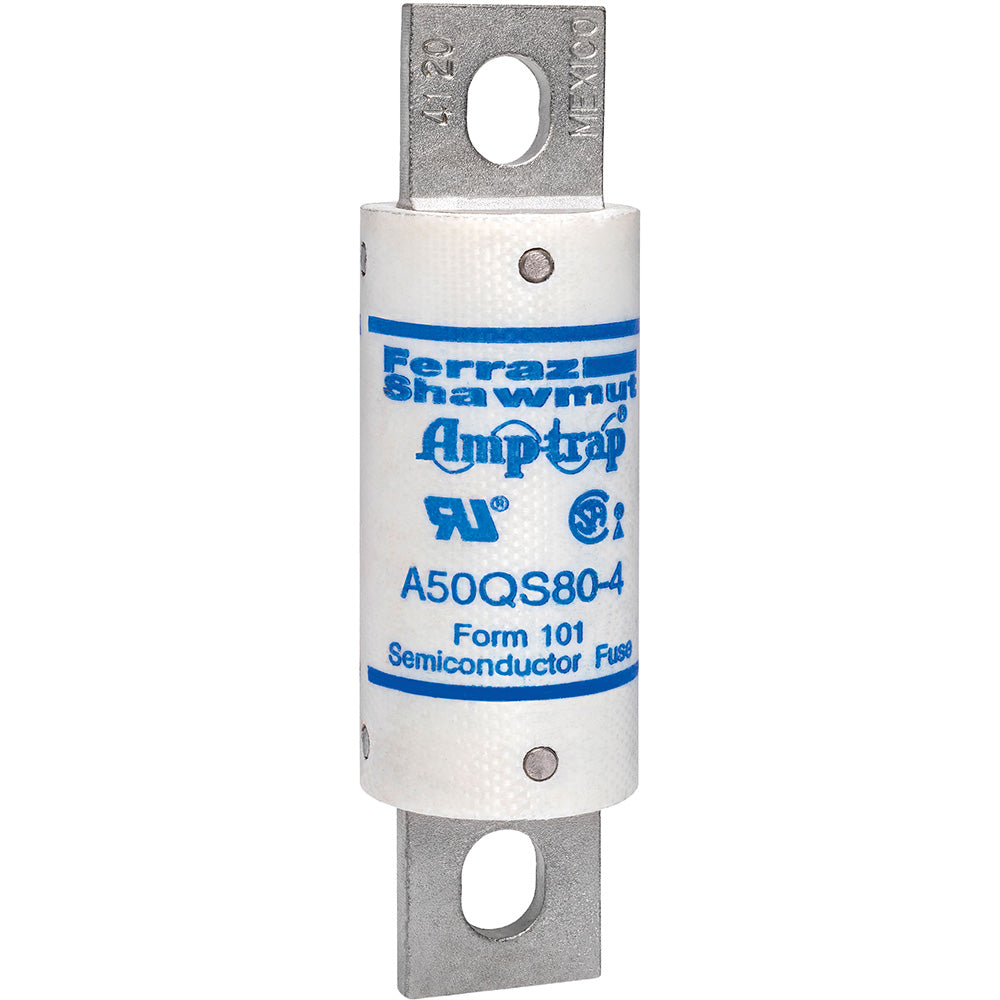

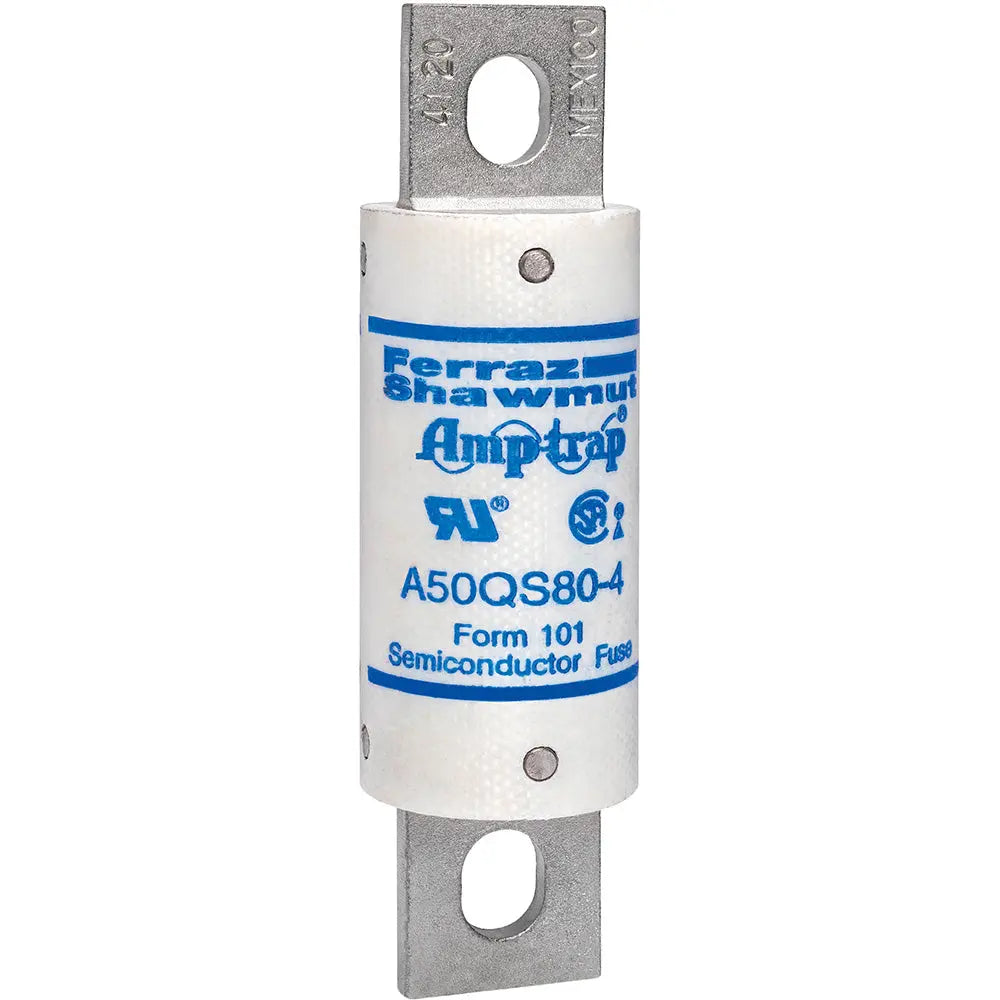

A50QS80-4
A50QS80-4 is a high-speed semiconductor fuse designed for reliable protection in demanding applications. This Amp-Trap® A50QS series fuse features a blade bolt-in mounting style and is rated for 80A at 500VAC/DC, providing superior cycling ability and low watts loss for cooler operation. Ideal for motor drives, inverters, UPS, and other dynamic solid-state equipment, it offers the lowest I2t for maximum semiconductor circuit protection. Engineered for both AC and DC systems, the A50QS80-4 fuse delivers state-of-the-art protection with a compact design that allows for equipment downsizing. Its robust construction ensures long life under cyclic loading and meets UL and CSA safety standards.
- 80A Ampere Rating
- 500VAC/DC Voltage Rating
- High Speed, Fast-Acting
- Blade Bolt-In Mounting
- 200kA AC Interrupt Rating
- 89kA DC Interrupt Rating
- Amp-Trap® A50QS Series
- UL Recognized, CSA Certified
- Non-Indicating, Non-Rejection
- 1" Diameter, 3.63" Length
- GMG Body Material
- Tin-Plated Brass Terminals
Specifications
- Part Number: A50QS80-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 500
- Amperage : 80
- AIC rating : 200kA@500V
- Connection : Bolt-In Blade
- Diameter : 1
- Barrels : 1
Product Data
- UPC : 78200194762
- GTIN : 00782001947620
- Country of Origin : Mexico
- Dimensions : x 3.63 in x
- Weight : 0.25
- Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
