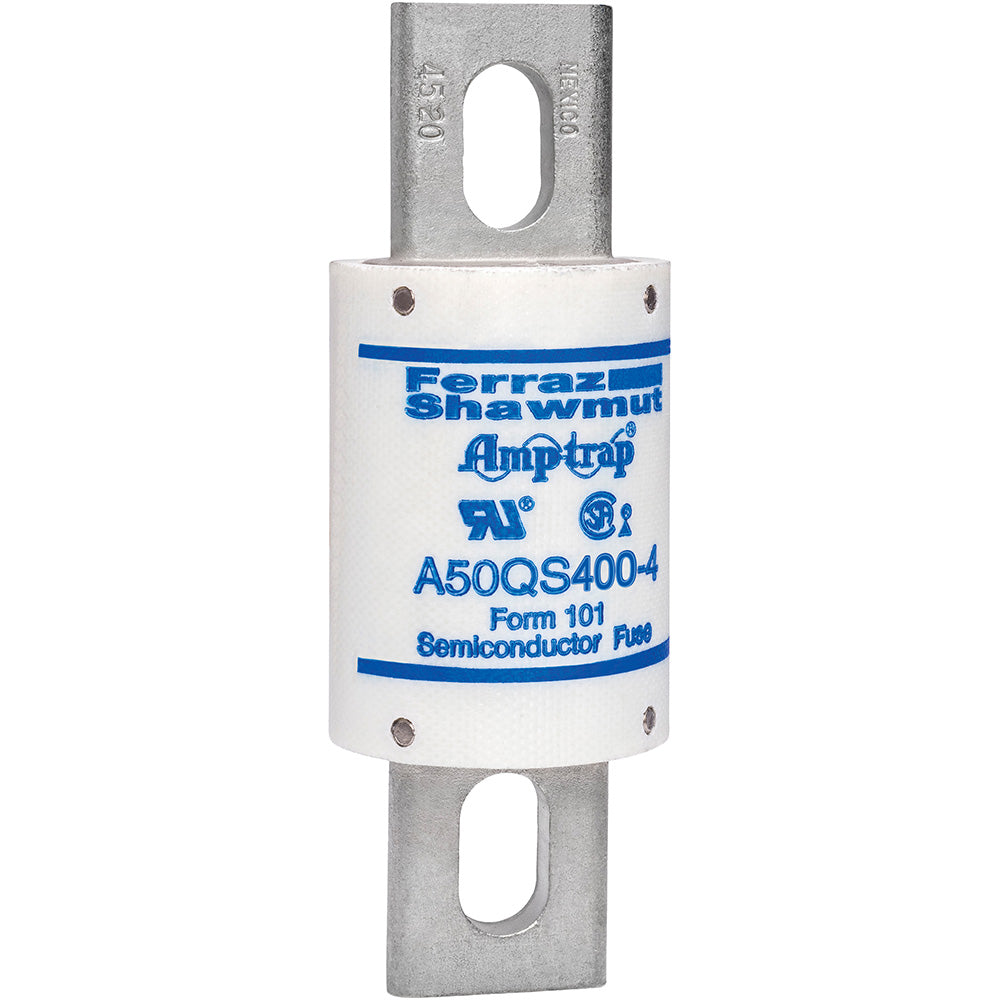

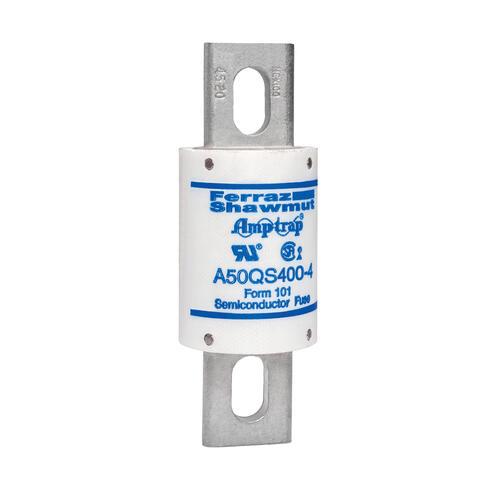

A50QS400-4 - Ferraz Shawmut 400A 500V Semiconductor Fuse High Speed Amp-Trap Series

A50QS400-4

A50QS400-4 is a high-speed semiconductor fuse from Ferraz Shawmut designed for 400 amps and 500 volts AC/DC applications.This fuse features superior cycling ability and low watts loss for cooler operation, making it ideal for protecting semiconductor devices. It has an AC interrupt rating of 200,000 AIC and a DC interrupt rating of 87,000 AIC. The fuse is UL recognized and CSA certified, with a physical size of 1.5" x 4.34" and a bolt tap mounting style.

Key Specifications
• Amperage: 400A
• Voltage Rating: 500V AC / 500V DC
• Interrupt Rating: 200,000 AIC AC, 87,000 AIC DC
• Fuse Type: Semiconductor, High Speed
• Series: Amp-Trap A50QS
• Mounting Type: Bolt Tap
• Physical Size: 1.5" x 4.34" (38.1 x 110 mm)
• Certifications: UL Recognized, CSA Certified
• Low Watts Loss for Cooler Operation
• Superior Cycling Ability
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A50QS400-4
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 500
• Amperage : 400
• AIC rating : 200kA@500V
• Connection : Bolt-In Blade
• Diameter : 1.5
• Barrels : 1

Product Data

• UPC : 78200194791
• GTIN : 00782001947910
• Country of Origin : Mexico
• Dimensions : x 4.34 in x
• Weight : 2
• Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
