Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A50QS300-4

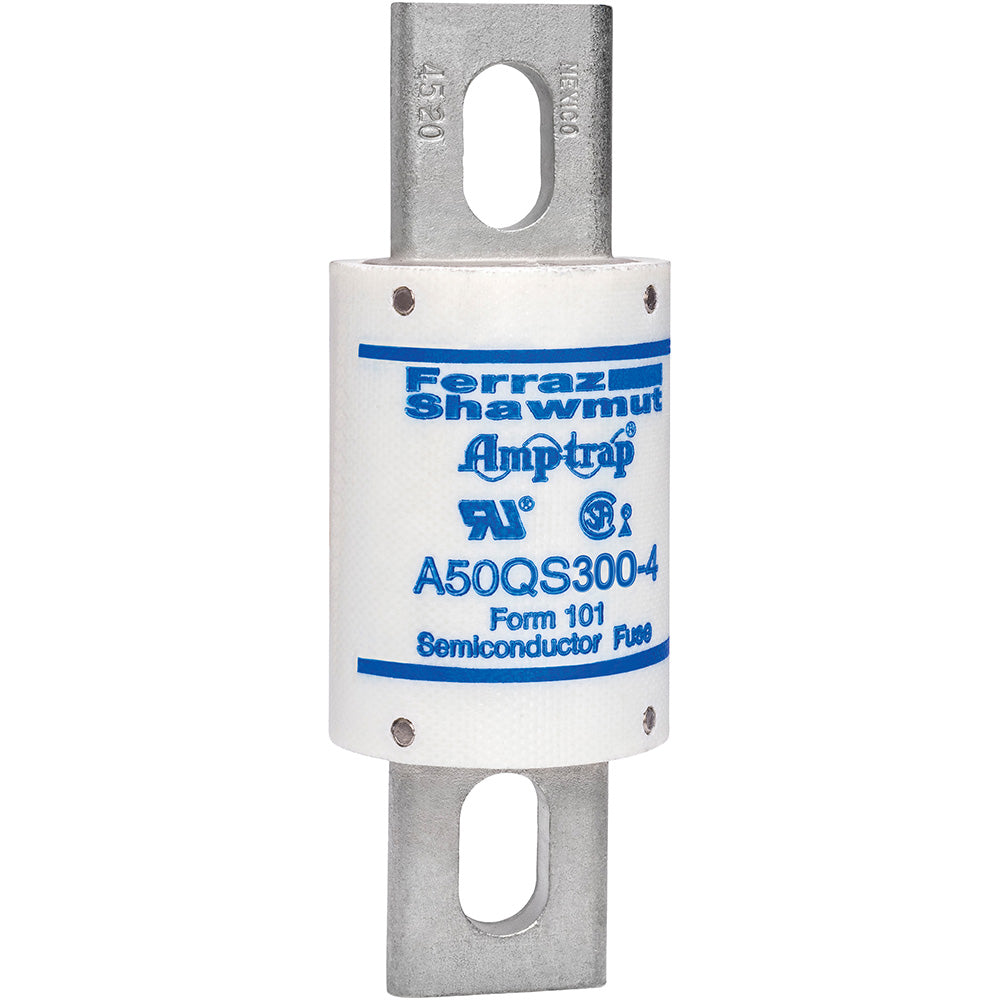

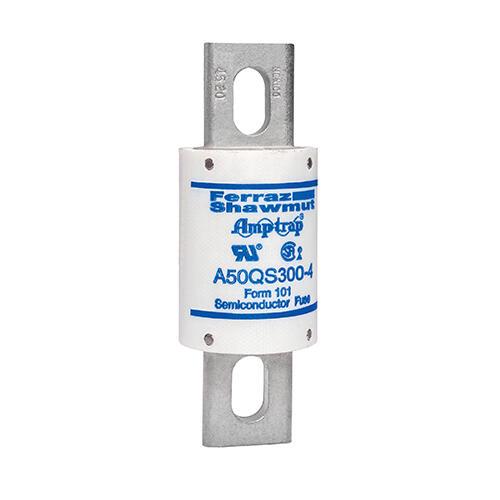

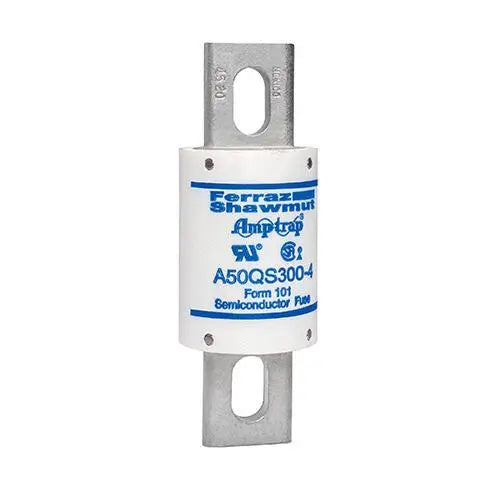

A50QS300-4 is a 300 amp, 500 volt Amp-Trap Form 101 semiconductor fuse designed for fast-acting protection in power electronics. A50QS300-4 features a blade bolt-in mounting type and is rated for 200kA interrupt capacity at 500VAC and 87kA at 500VDC. It offers low I2t for superior semiconductor circuit protection, low watts loss for cooler operation, and excellent cycling ability for longer life. This fuse is UL recognized and CSA certified, ideal for protecting motor drives, inverters, UPS systems, and other dynamic solid-state equipment.
- Key Specifications
- Amperage: 300A
- Voltage Rating: 500VAC / 500VDC
- Interrupt Rating: 200kA AC / 87kA DC
- Fuse Type: Amp-Trap Form 101 Semiconductor Fuse
- Mounting Type: Blade Bolt-In
- Fast-Acting
- Low I2t for semiconductor protection
- Low watts loss for cooler operation
- UL Recognized and CSA Certified
- Compact cylindrical body design
- Applications: Motor drives, UPS, inverters
Specifications
- Part Number: A50QS300-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A50QS
- Voltage : 500
- Amperage : 300
- AIC rating : 200kA@500V
- Connection : Bolt-In Blade
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 782001947804
- GTIN : 00782001947804
- Country of Origin : Mexico
- Dimensions : x 4.34 in x
- Weight : 1
- Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
