Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
A50QS25-1

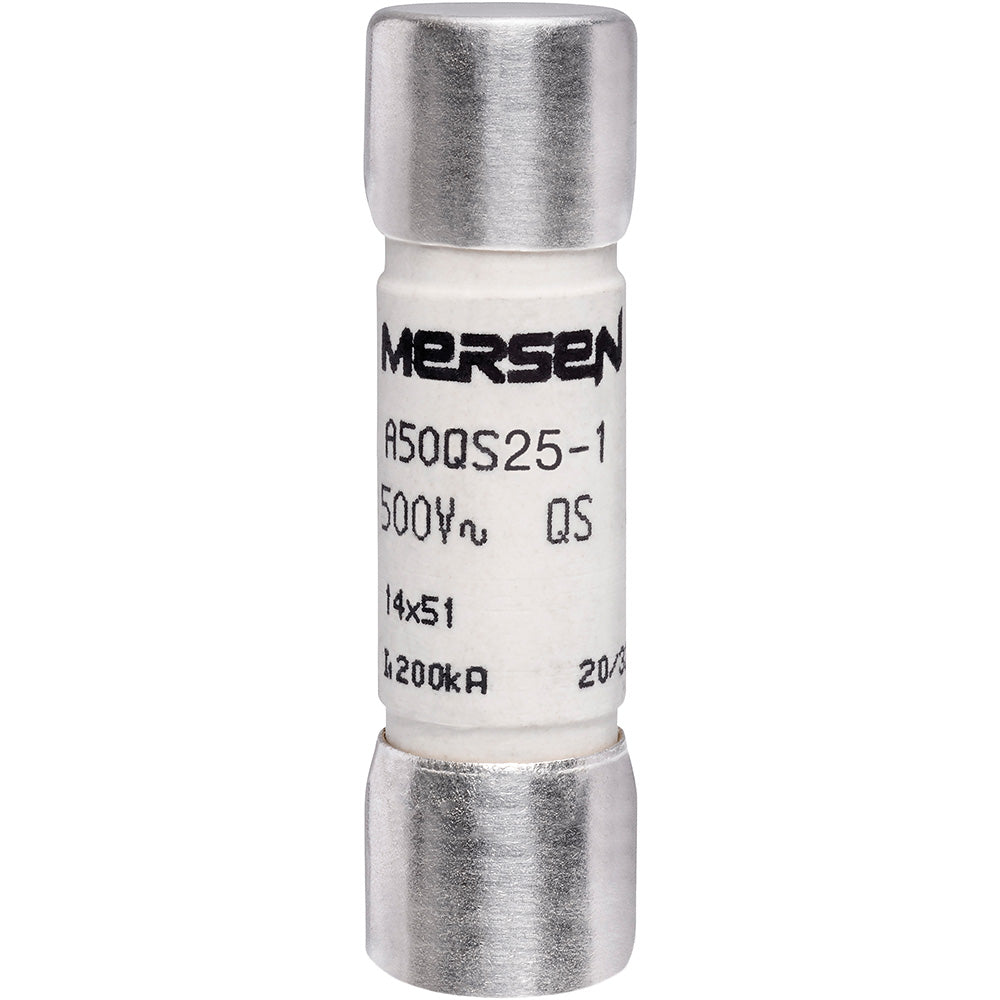

A50QS25-1 is a 25 Amp, 500 Volt AC/DC semiconductor high speed fuse from Eaton's Amp-Trap A50QS series.This fuse features a fast-acting design with superior cycling ability, making it ideal for semiconductor protection. It has a 500V AC and 500V DC voltage rating, with an AC interrupting rating of 200,000 AIC and DC interrupting rating of 87,000 AIC. The fuse body measures approximately 0.25" x 1.25" and is UL recognized and CSA certified for safety and reliability.
- Key Specifications
- Amperage: 25A
- Voltage Rating: 500V AC / 500V DC
- Fuse Type: Semiconductor High Speed
- Interrupting Rating: 200,000 AIC AC / 87,000 AIC DC
- Physical Size: 0.25" x 1.25"
- Mounting Type: Clip
- Series: Amp-Trap A50QS
- Certifications: UL Recognized, CSA Certified
- Low Watts Loss for Cooler Operation
- Superior Cycling Ability
Specifications
- Part Number: A50QS25-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A50QS
- Voltage : 500
- Amperage : 25
- AIC rating : 200kA@500Vac
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- Weight : 5.19
