Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
A50QS200-4R

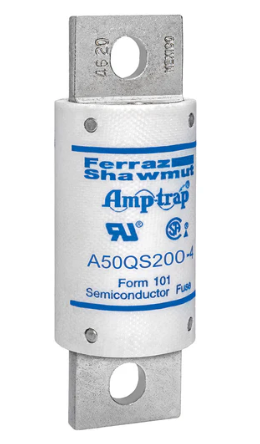

A50QS200-4R is a 200 Amp, 500 Volt semiconductor fuse designed for high-speed protection in electrical systems.
This Eaton (Mersen) A50QS series fuse features a bolt-on mounting style and is part of the Amp-Trap® A50QS line, optimized for protecting dynamic solid state equipment such as motor drives, inverters, and UPS systems. It offers superior cycling ability, low I2t for enhanced equipment protection, and low watts loss for cooler operation. The fuse has a tin-plated brass blade terminal connection and is UL recognized and CSA certified.
- Key Specifications
- Amperage: 200 Amp
- Voltage Rating: 500 Volts AC/DC
- Mounting Type: Bolt-On
- Fuse Type: Semiconductor, High Speed
- Series: Amp-Trap® A50QS
- Interrupt Rating AC: 200,000 AIC
- Interrupt Rating DC: 87,000 AIC
- Connection/Terminal Material: Tin-Plated Brass
- Body Material: Fiberglass
- Certifications: UL Recognized, CSA Certified
- Dimensions: Approximately 1.22 in diameter x 3.63 in length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A50QS200-4R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A50QS
- Voltage : 500
- Amperage : 200
- AIC rating : 200kA@500V
- Connection : Bolt-In Blade
- Diameter : 1.5
- Barrels : 1
Product Data
- Weight : 0.6
