A50QS175-4 - Eaton Mersen 175 Amp 500 Volt Semiconductor Fuse Amp-Trap A50QS Series

A50QS175-4

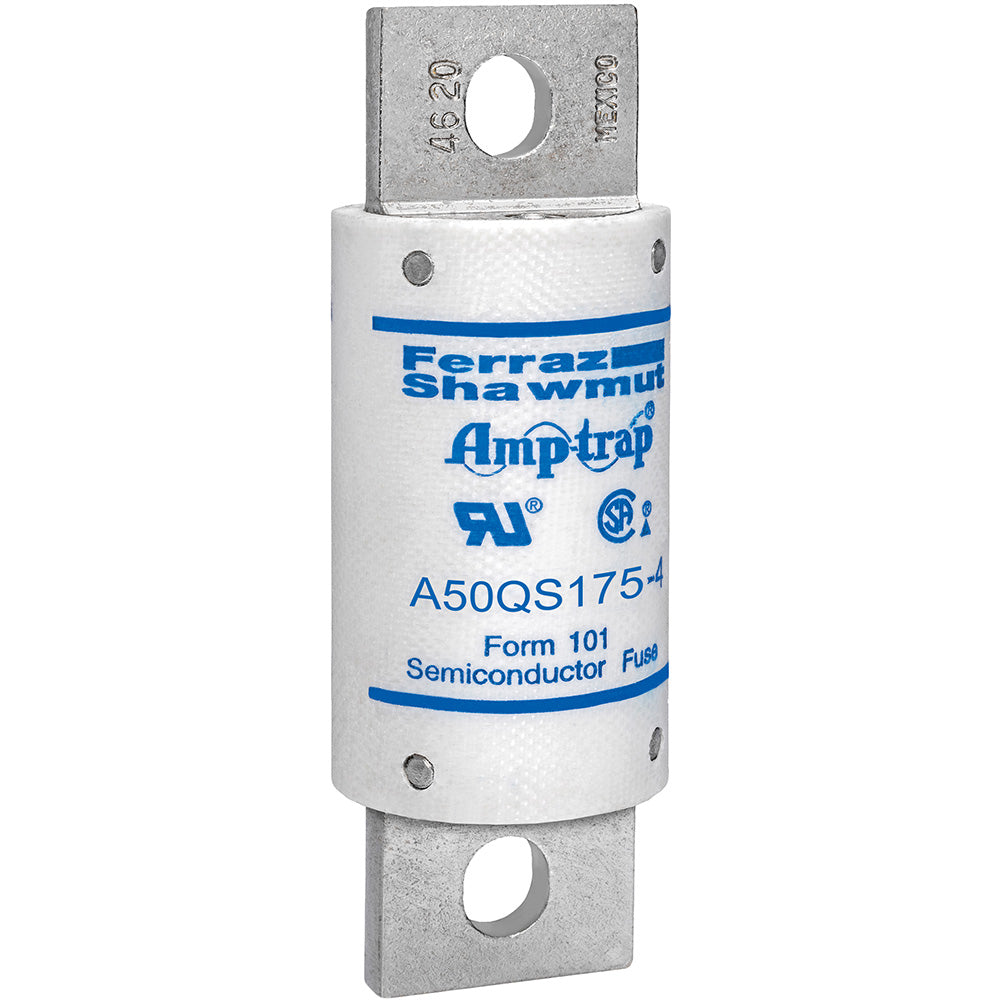

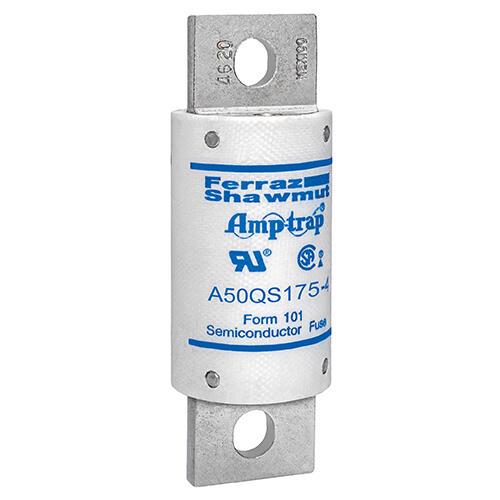

A50QS175-4 is a high-speed semiconductor fuse from Eaton Mersen designed for protecting sensitive electronic equipment at up to 500 volts.

This A50QS Amp-Trap® fuse features a 175 amp rating and is suitable for use in motor drives, inverters, and UPS systems. It offers superior cycling ability, low I2t for enhanced semiconductor protection, and low watts loss for cooler operation. The fuse has a bolt-on mounting style with blade terminals made of tin-plated brass, ensuring reliable electrical connections. It is UL recognized and CSA certified, meeting stringent North American safety standards.

Key Specifications
• Amperage: 175 Amp
• Voltage Rating: 500 Volts AC/DC
• Fuse Series: Amp-Trap® A50QS
• Fuse Speed: High Speed (Fast-Acting)
• Mounting Type: Bolt-On
• Terminal Type: Blade
• Interrupt Rating: 200,000 AIC AC / 87,000 AIC DC
• Body Material: Fiberglass
• Connection Material: Tin-Plated Brass
• Certifications: UL Recognized (UL File 60314), CSA Certified (LR12636)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A50QS175-4
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A50QS
• Voltage : 500
• Amperage : 175
• AIC rating : 200kA@500V
• Connection : Bolt-In Blade
• Diameter : 1.22
• Barrels : 1

Product Data

• UPC : 782001947750
• GTIN : 00782001947750
• Country of Origin : Mexico
• Dimensions : x 3.63 in x
• Weight : 5
• Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
