Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

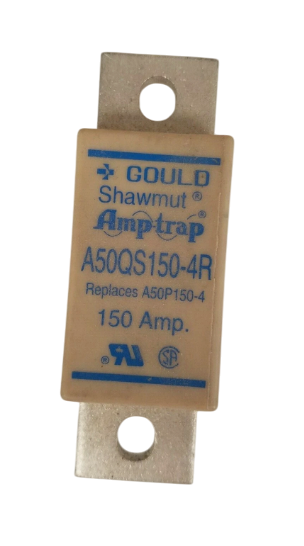

A50QS150-4R
A50QS150-4R is a high-speed semiconductor fuse designed for low-voltage power distribution and semiconductor protection applications. This fast-acting fuse delivers reliable circuit protection with a 150-ampere rating at 500V AC/DC, featuring a bolt-on connection style for secure panel mounting. The A50QS series Amp-Trap fuse combines rapid response characteristics with a 200 kA AC interrupt rating to safeguard sensitive equipment and power systems.
- Amperage Rating: 150A
- Voltage Rating: 500V AC / 500V DC
- Fuse Type: Fast-Acting (High Speed)
- Series: A50QS
- Connection Style: Bolt-On
- Interrupt Rating AC: 200 kA
- Interrupt Rating DC: 87 kA
- Body Material: Fiberglass
- Terminal Material: Tin-Plated Brass
- Certifications: UL Recognized (File 60314), CSA Certified (LR12636), RoHS 2011/65/EU Compliant
- Overall Length: 3 5/8 inches
- Overall Diameter: 1 1/4 inches
Specifications
- Part Number: A50QS150-4R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A50QS
- Voltage : 500
- Amperage : 150
- AIC rating : 200kA@500V
- Connection : Bolt-In Blade
- Diameter : 1.22
- Barrels : 1
Product Data
- Weight : 5.19
