Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
A50QS100-4R

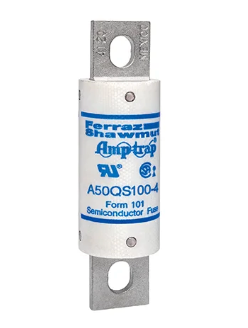

A50QS100-4R is a high-speed semiconductor fuse designed for reliable protection in demanding electrical applications. This fuse features a robust bolt-on mounting design and is engineered to deliver fast-acting performance for sensitive equipment. The A50QS100-4R fuse is part of the A50QS series, known for its superior cycling ability and low watts loss, making it ideal for use in motor drives, inverters, UPS systems, and other dynamic solid-state equipment. Its compact size allows for efficient use of panel space, while its high interrupting rating ensures dependable protection under fault conditions.
- 100 Amp amperage rating
- 500V AC/DC voltage rating
- Bolt-on mounting type
- High-speed, fast-acting operation
- Superior cycling ability
- Low watts loss for cooler operation
- Compact physical size
- UL recognized component
- CSA certified
- Series: A50QS
- Interrupting rating: 200,000 AIC (AC), 87,000 AIC (DC)
- Equivalent to Buss FWH style
Specifications
- Part Number: A50QS100-4R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A50QS
- Voltage : 500
- Amperage : 100
- AIC rating : 200kA@500V
- Connection : Bolt-In Blade
- Diameter : 1
- Barrels : 1
Product Data
- Weight : 5.19
