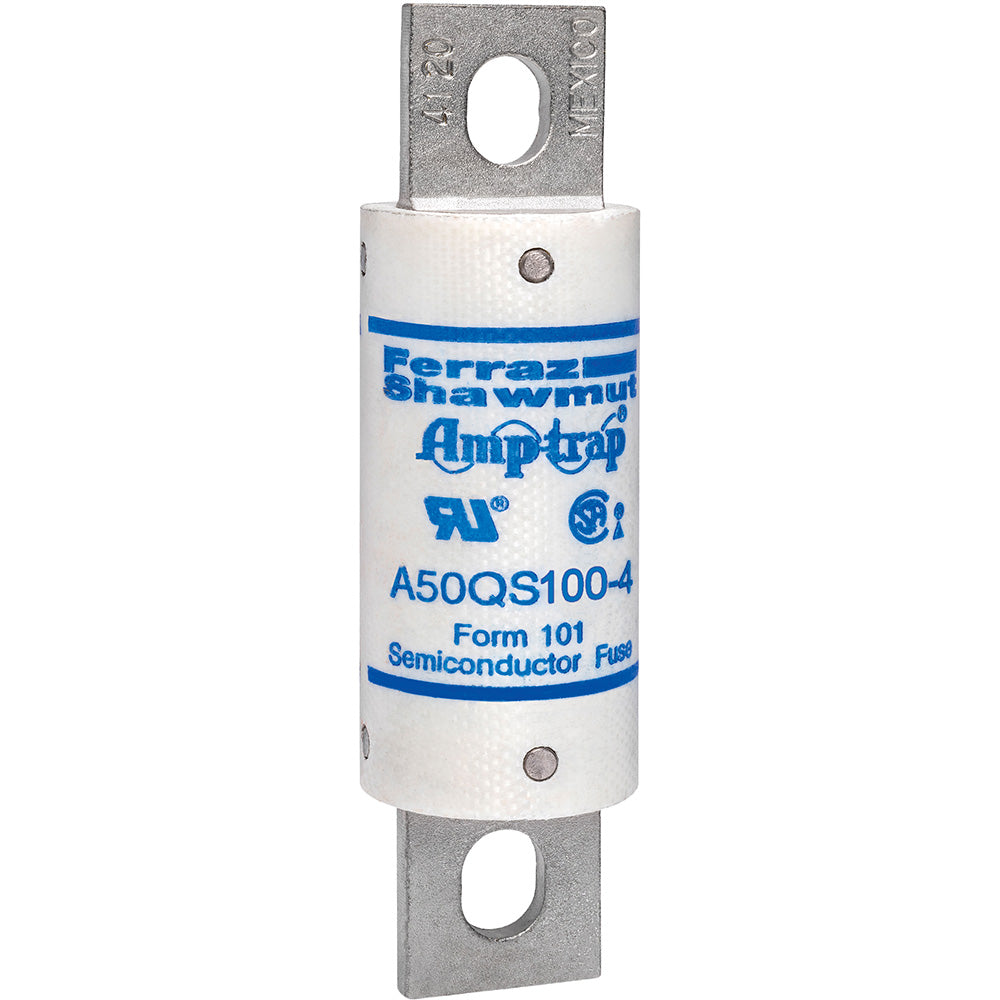

A50QS100-4 - Eaton 100 Amp 500V Semiconductor Fuse Fast-Acting Bolt-On Interrupt 200kA AC 87kA DC

A50QS100-4

A50QS100-4 is a high-speed semiconductor fuse from Eaton designed for 100 Amp, 500 Volt AC/DC applications with bolt-on mounting.This Eaton A50QS100-4 fuse features a 100 Amp rating with 500V AC and 450-500V DC voltage ratings, providing fast-acting protection with a high interrupt rating of 200,000 AIC AC and 87,000 AIC DC. It offers low watts loss for cooler operation and superior cycling ability, making it ideal for semiconductor circuit protection. The fuse is UL recognized and CSA certified, with a compact cylindrical body style approximately 1 inch in diameter and 3.63 inches in length.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 500V AC / 450-500V DC
• Interrupt Rating: 200,000 AIC AC / 87,000 AIC DC
• Fuse Type: Semiconductor, Fast-Acting
• Mounting Type: Bolt-On
• Body Style: Cylindrical, 1" x 3.63"
• UL Recognized Component (UL File 60314)
• CSA Certified (LR12636)
• Low Watts Loss for Cooler Operation
• Superior Cycling Ability
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A50QS100-4
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 500
• Amperage : 100
• AIC rating : 200kA@500V
• Connection : Bolt-In Blade
• Diameter : 1
• Barrels : 1



Product Data

• UPC : 078200194764
• GTIN : 00782001947644
• Country of Origin : Mexico
• Dimensions : x 3.63 in x
• Weight : 0.25
• Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
