Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

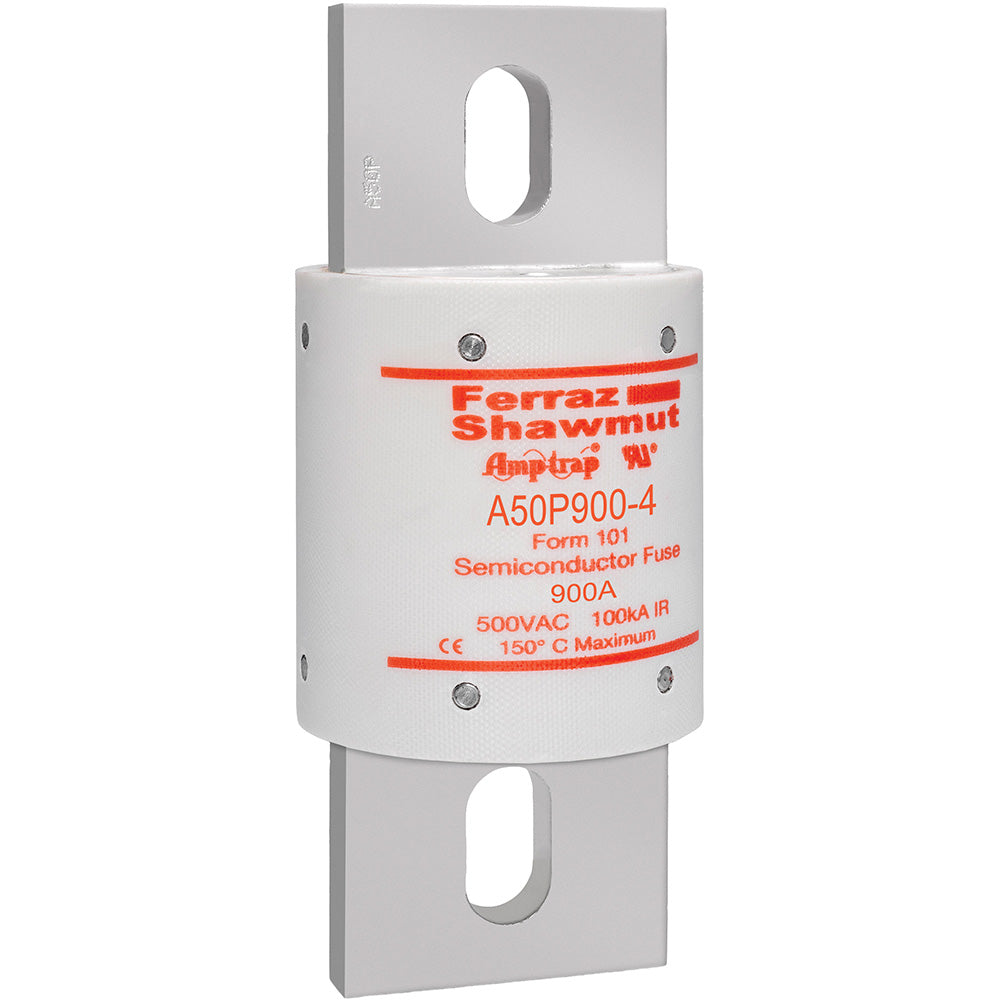

A50P900-4
A50P900-4 is a high-speed semiconductor fuse from Eaton designed for reliable circuit protection in AC and DC applications.
This 900 amp, 500 volt fuse features a blade-type mounting and fast-acting current limiting characteristics, making it ideal for DC drives and uninterruptable power supplies. It has an AC interrupting rating of 100,000 AIC and a DC interrupting rating of 79,000 AIC, ensuring superior protection and reduced stress on circuit components. The fuse is UL recognized and constructed with silver-plated copper contacts and GMG insulation for durability and performance.
- Key Specifications
- Amperage: 900 Amps
- Voltage Rating: 500 VAC / 450 VDC
- Fuse Type: Semiconductor, High-Speed
- Mounting Type: Blade (Bolt-In)
- Interrupting Rating: 100,000 AIC (AC), 79,000 AIC (DC)
- Body Material: GMG Insulation
- Contact Material: Silver-Plated Copper
- Dimensions: Approx. 3.00" x 6.97"
- Series/Frame: A50P
- Certifications: UL Recognized Component
- Part Number: A50P900-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A50P
- Voltage : 500
- Amperage : 900
- AIC rating : 100kA@500V
- Connection : Bolt-In Blade
- Diameter : 3
- Barrels : 1
- UPC : 078200194786
- GTIN : 00782001947866
- Weight : 4
- Certification : UL
