Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A50P800-4

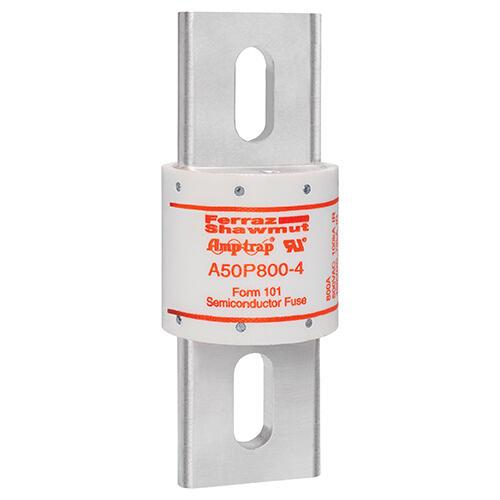

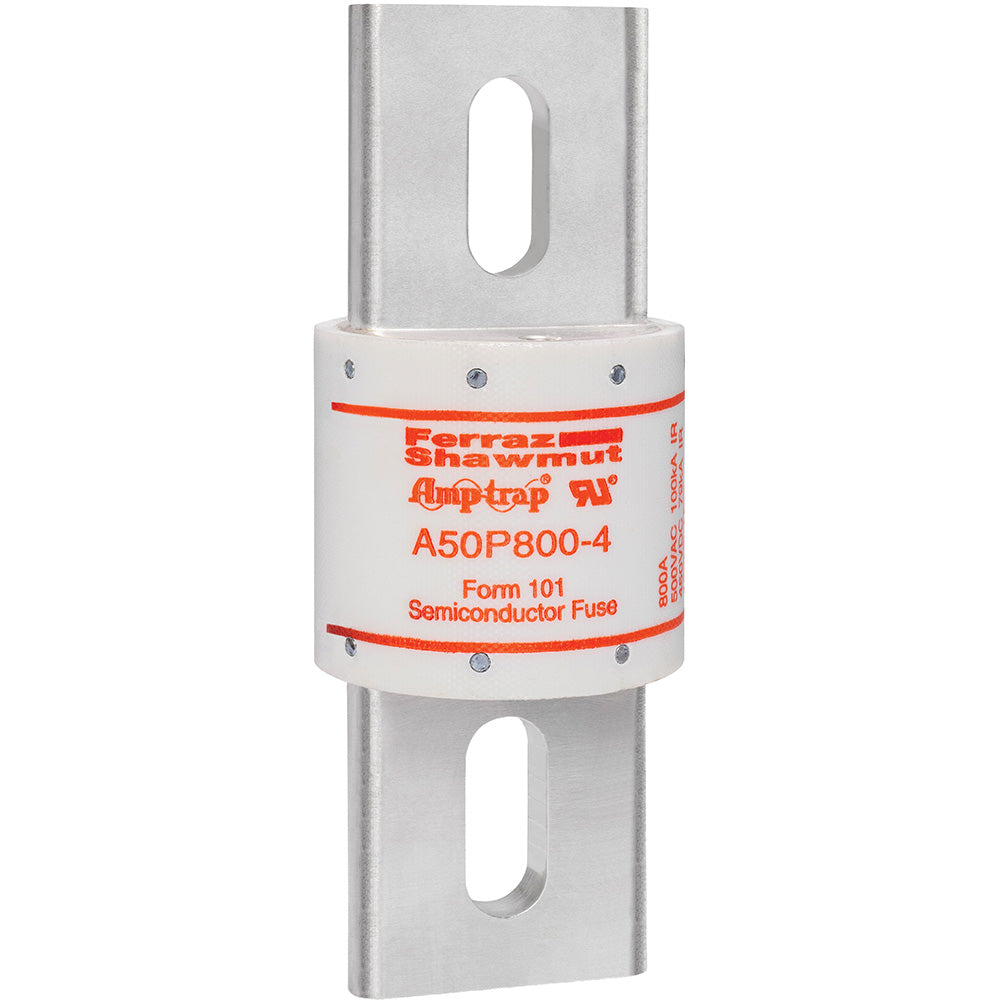

A50P800-4 is a high speed Amp-Trap® A50P fuse rated for 800 amps and 500 volts AC, designed for semiconductor protection in DC drives and uninterruptable power supplies.This Eaton (Mersen) fuse features a blade bolt-in mounting type with silver-plated copper terminals and a GMG insulating body. It provides fast-acting protection with a low I2t characteristic to minimize damage to sensitive components during short circuits. The fuse is UL recognized and CSA certified, with an interrupt rating of 200kA at 500VAC and 100kA at 450VDC.
- Amperage: 800 Amp
- Voltage Rating: 500 VAC / 450 VDC
- Fuse Type: Amp-Trap® A50P High Speed
- Mounting: Blade Bolt-In
- Terminal Material: Silver-Plated Copper
- Body Material: GMG Insulating Material
- Interrupt Rating: 200kA AC / 100kA DC
- Certifications: UL Recognized, CSA Certified
- Application: DC Drives, UPS, Semiconductor Protection
- Low I2t for reduced component stress
- Controlled arc voltage for safer fuse clearing
Specifications
- Part Number: A50P800-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A50P
- Voltage : 500
- Amperage : 800
- AIC rating : 100kA@500V
- Connection : Bolt-In Blade
- Diameter : 2.5
- Barrels : 1
Product Data
- UPC : 782001946302
- GTIN : 00782001946302
- Country of Origin : Mexico
- Dimensions : x 6.47 in x
- Weight : 3 lb
- Certification : UL
