A50P500-4 - Eaton 500A 500V Semiconductor Fast-Acting Fuse, Amp-Trap Series, 1 Pole, Stud Mount, 100kA Interrupt, UL Recognized

A50P500-4

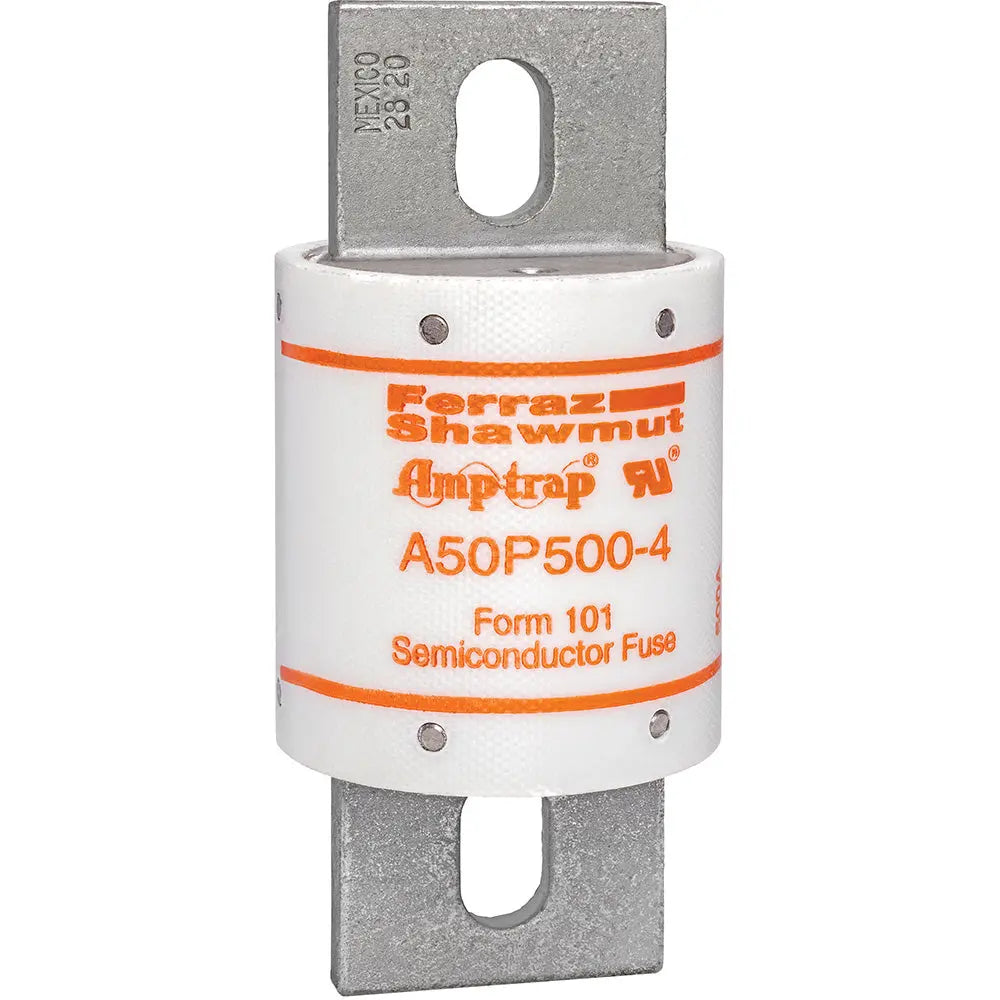

A50P500-4 is a 500A, 500V semiconductor fast-acting fuse designed for superior protection in demanding power applications.

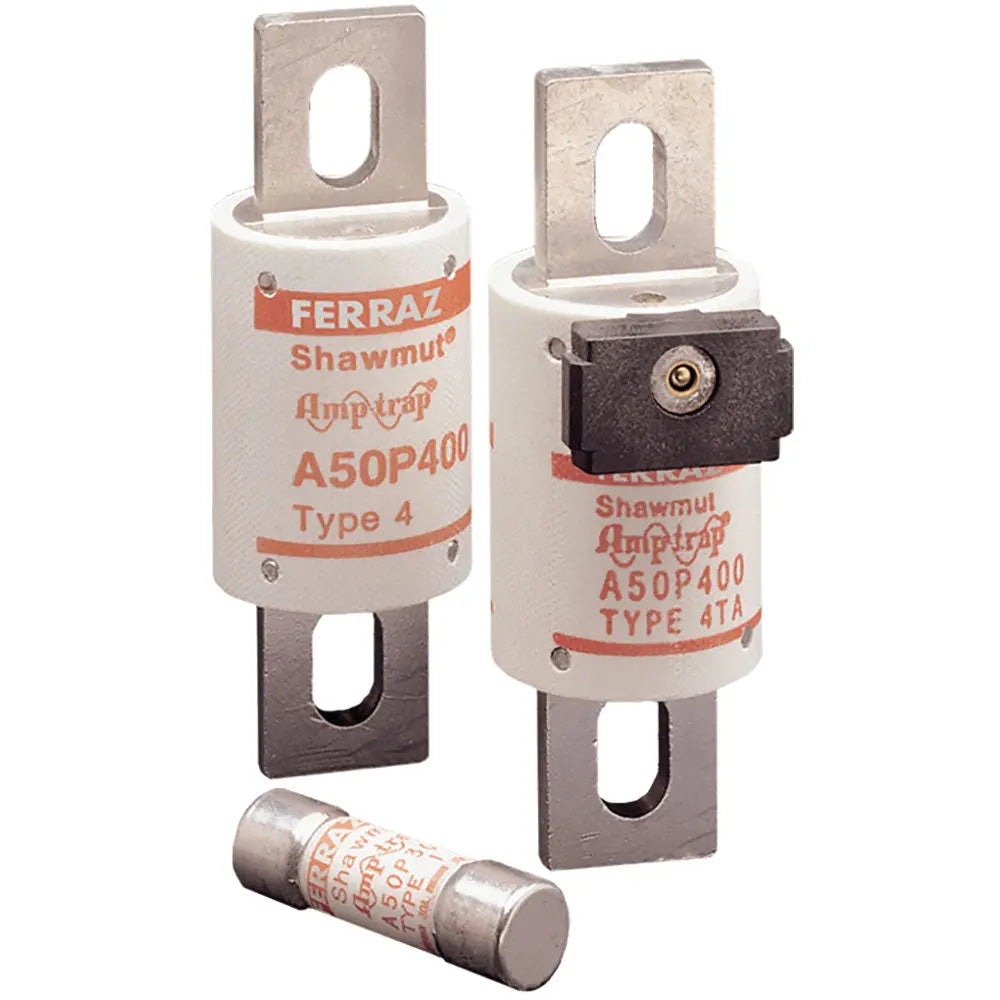

This Eaton (Ferraz Shawmut/Mersen) Amp-Trap series fuse features a fast-acting, current-limiting design, ideal for DC drives, uninterruptible power supplies, and similar equipment. It minimizes damage to protected components with low I2t and controlled arc voltage, reducing stress during fuse clearing. The fuse is UL recognized and offers reliable performance in industrial, commercial, and residential settings.

Key Specifications

• Amperage: 500A
• Voltage: 500V AC / 450V DC
• Poles: 1
• Mounting Type: Stud mount (Blade bolt-in)
• Interrupt Rating: 100,000A AC / 79,000A DC
• Series/Frame: Amp-Trap A50P
• Trip Unit: Fast-acting, current-limiting
• Certifications: UL Recognized (UL Guide No. JFHR2), CSA
• Physical Size: 2.00" x 4.47"
• Temperature Rating: Up to 150°C
• Application: Protection of DC drives, UPS, and equipment up to 500V
• Superior reliability and low I2t for component protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A50P500-4
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A50P
• Voltage : 500
• Amperage : 500
• AIC rating : 100kA@500V
• Connection : Bolt-In Blade
• Diameter : 2
• Barrels : 1

Product Data

• UPC : 782001946203
• GTIN : 00782001946203
• Country of Origin : Mexico
• Dimensions : x 4.47 in x
• Weight : 2
• Certification : UL
