Product Info
- Manufacturer:Mersen
Description
A50P4504

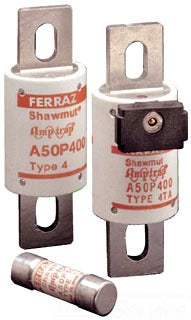

A50P450-4 is a high-speed Amp-Trap® fuse from Mersen designed for DC drives, UPS, and similar applications requiring fast-acting, current-limiting protection. A50P450-4 features a 450 ampere rating with voltage ratings of 500 VAC and 450 VDC, providing reliable protection with a high interrupting rating of up to 100 kA at 500 VAC and 79 kA at 450 VDC. This fuse uses a bolt-in blade mounting style and is part of the A50P series known for low I2t to minimize damage to protected components and controlled arc voltage to reduce stress during fuse clearing.
- Key Specifications
- Amperage: 450 A
- Voltage Rating AC: 500 VAC
- Voltage Rating DC: 450 VDC
- Interrupting Rating: 100 kA at 500 VAC, 79 kA at 450 VDC
- Mounting Type: Bolt-in blade
- Speed/Characteristic: High speed, fast acting
- Series/Frame: Amp-Trap® A50P
- Application: Protection of DC drives, UPS, and equipment ≤ 500 V
- UL Category Code: JFHR2
- Compliance: Reach and RoHS compliant
- Operating Temperature: -25 °C to 80 °C
Specifications
- Part Number: A50P4504
- Manufacturer : Mersen
- Brand : Mersen
Product Data
- UPC : 78200194624
- GTIN : 00782001946241
- Weight : 5.19
