Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A50P400-4

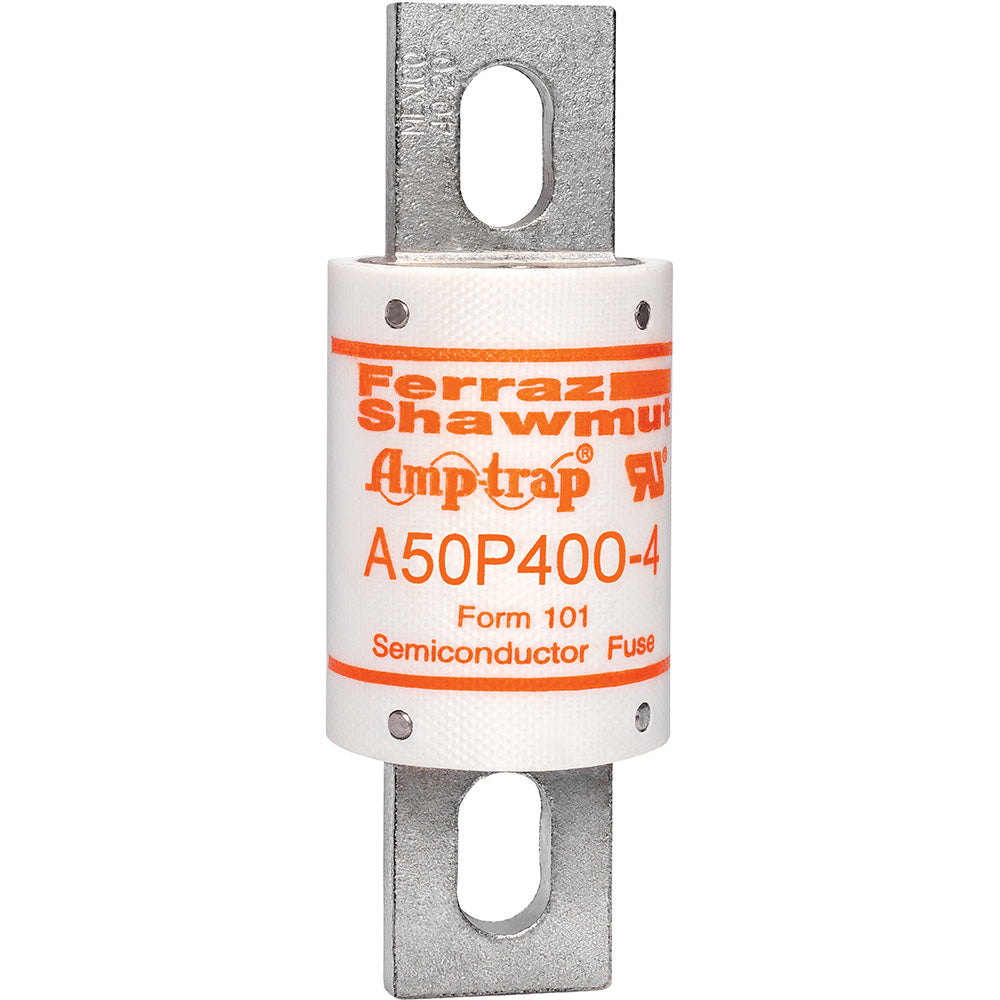

A50P400-4 is a high-speed semiconductor protection fuse designed for reliable current limiting and fast acting performance in DC drives and UPS applications.This Mersen Ferraz Shawmut A50P400-4 fuse features a 400 ampere rating and is rated for 500 volts AC and 450 volts DC operation. It provides current limiting protection with a 100 kA interrupt rating, minimizing damage to sensitive electronic components during short circuits. The fuse has a cylindrical body with blade terminals for easy mounting and replacement. It is UL approved and part of the Amp-Trap® A50P series, known for superior reliability and controlled arc voltage.
- Key Specifications
- Amperage: 400 A
- Voltage Rating: 500 VAC / 450 VDC
- Interrupt Rating: 100 kA
- Fuse Type: Semiconductor, Fast Acting
- Series: Amp-Trap® A50P Form 101
- Mounting Type: Blade Terminal
- Body Style: Cylindrical
- Approvals: UL Listed
- Dimensions: Approx. 38.1 x 110 mm
- Part Number: A50P400-4
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 500
- Amperage : 400
- AIC rating : 100kA@500V
- Connection : Bolt-In Blade
- Diameter : 1.5
- Barrels : 1
- UPC : 78200194623
- GTIN : 00782001946234
- Country of Origin : Mexico
- Dimensions : x 4.34 in x
- Weight : 2
