Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A50P35-4

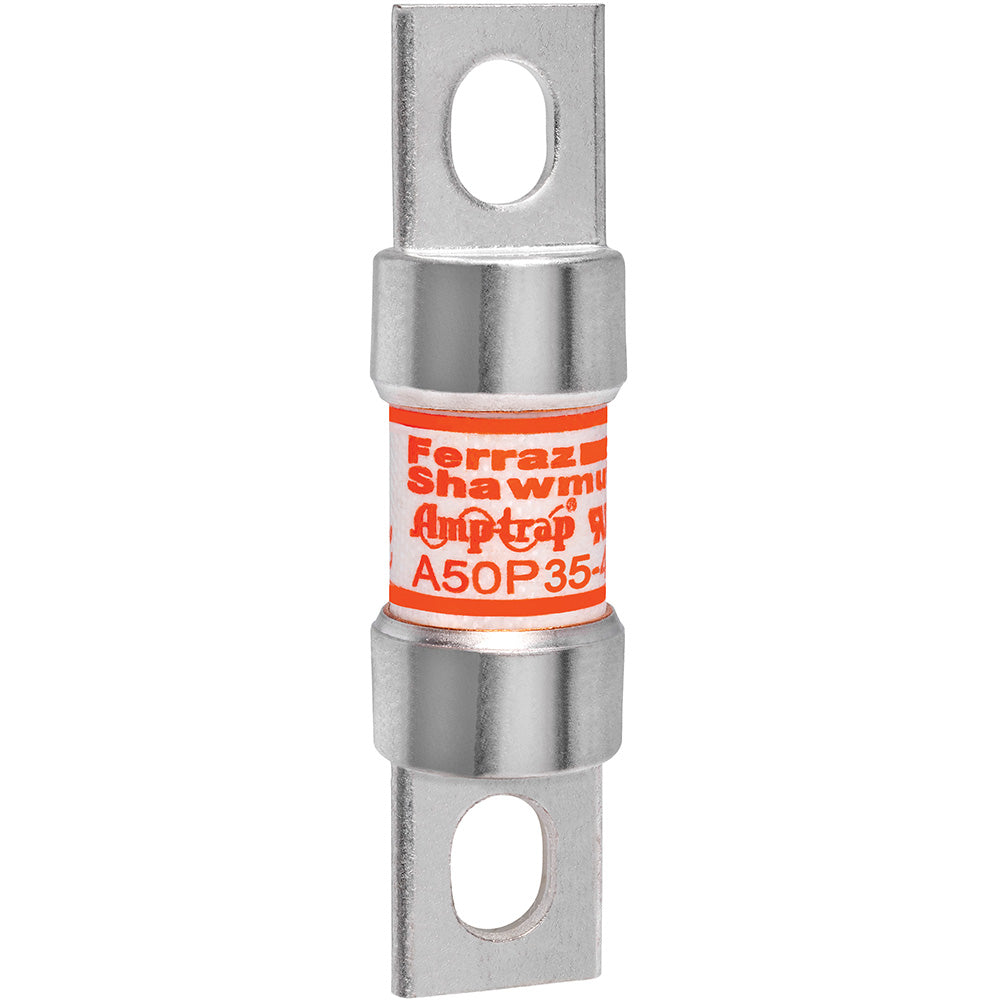

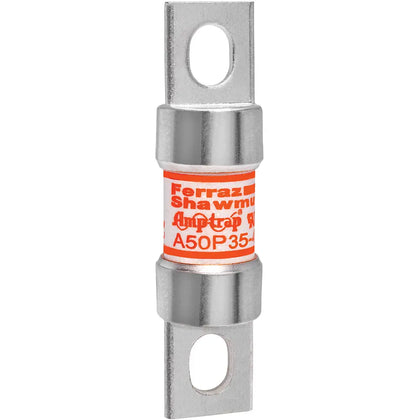

A50P35-4 is a Ferraz Shawmut semiconductor high speed fuse designed for semiconductor protection applications.This fuse features a 35 ampere rating and a voltage rating of 500 VAC / 450 VDC. It is a Class 4 fuse with very fast acting characteristics, suitable for protecting sensitive semiconductor devices. The fuse has a round shape with a bolt-on mounting type and UL Recognized Component certification. It offers an interrupt rating of 25 kiloamps AC and measures approximately 3.19 inches in length with a diameter of 0.81 inches.
- Key Specifications
- Amperage: 35A
- Voltage: 500 VAC / 450 VDC
- Class: 4
- Type: Semiconductor High Speed Fuse
- Mounting Type: Bolt-On
- Interrupt Rating: 25 kA AC
- Length: 3.19 inches (81 mm)
- Diameter: 0.81 inches (20.6 mm)
- UL Recognized Component
- Round shape
- Part Number: A50P35-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A50P
- Voltage : 500
- Amperage : 35
- AIC rating : 100kA@500V
- Connection : Bolt-In Blade
- Diameter : 0.81
- Barrels : 1
- UPC : 782001945961
- GTIN : 00782001945961
- Weight : 5
