Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

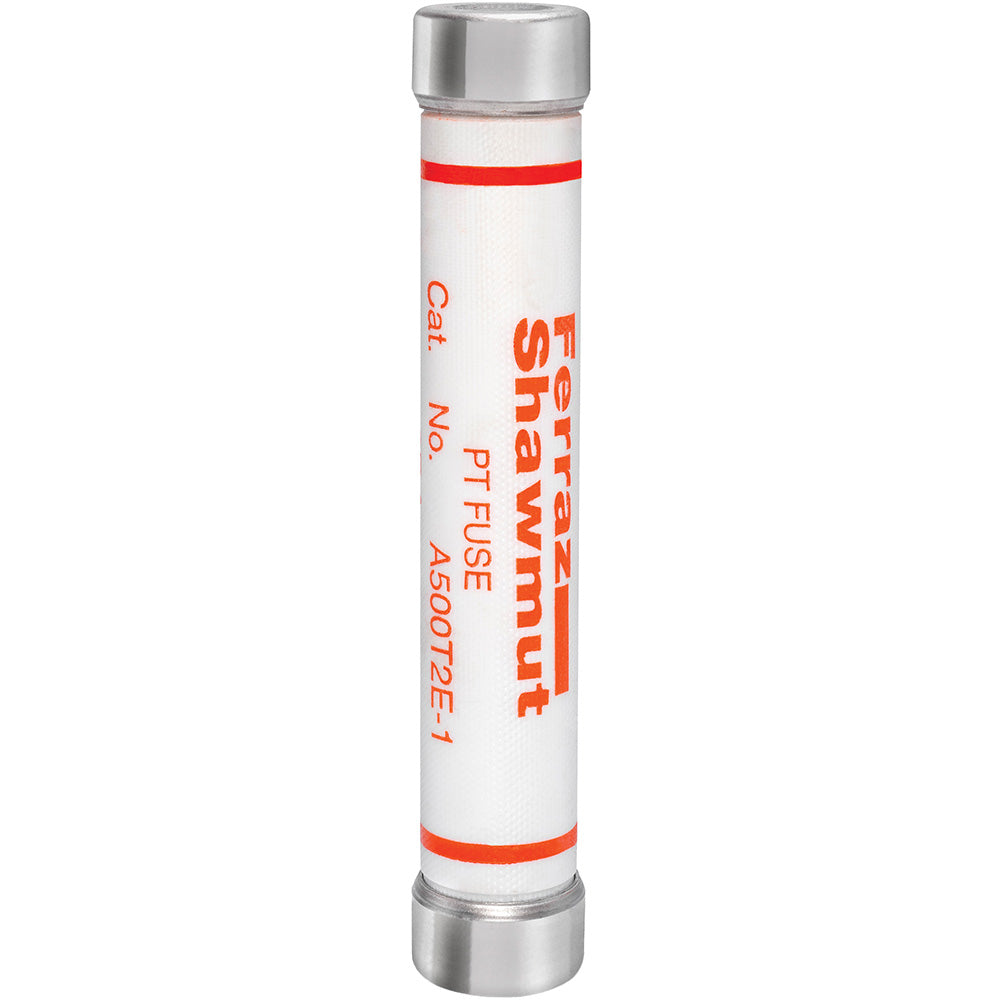

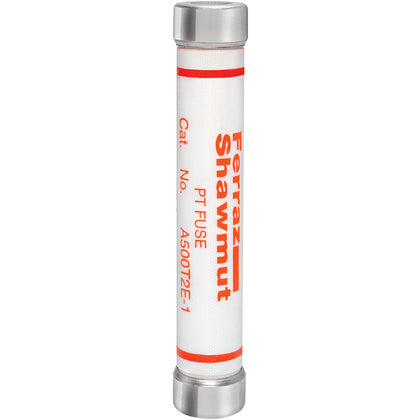

A500T2E-1
A500T2E-1 is a 2 Amp, 5000 Volt medium voltage current-limiting transformer fuse designed for primary winding protection of potential transformers.A500T2E-1 features a fast-acting speed and a high interrupting rating of 50,000 amperes symmetrical, ensuring superior equipment protection. It is a ferrule-type fuse with a physical size of approximately 1 inch diameter by 5 5/8 inches length, mounting in standard clips for easy installation. This fuse is approved for use with potential transformers (PT) and control potential transformers (CPT).
- Key Specifications
- Amperage: 2 Amp
- Voltage Rating: 5000 VAC
- Interrupting Rating: 50,000 A Symmetrical
- Fuse Type: Current-Limiting
- Speed: Fast Acting
- Mounting Type: Ferrule Type, mounts in standard clips
- Physical Size: 1 inch diameter x 5 5/8 inch length
- Application: Primary winding protection of potential transformers
- Approvals: PT and CPT
Specifications
- Part Number: A500T2E-1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Amp-Trap Series
- Type : A500T
- Voltage : 5000
- Amperage : 2
- AIC rating : 80kA@5kV
- Temp Rating : -13–158 °F (-25–70 °C)
- Diameter : 1
- Class Rating : E
- Barrels : 1
- Clip Center : 5
Product Data
- UPC : 78200180054
- GTIN : 00782001800543
- Country of Origin : Mexico
- Dimensions : x 5.63 in x
- Weight : 0.5
- Temp Rating : -13–158 °F (-25–70 °C)
