A500T1E-1 - Mersen 1A 5kVAC Medium Voltage Potential Transformer Fuse, Class E, 50kA Interrupt, Ferrule Mount

A500T1E-1

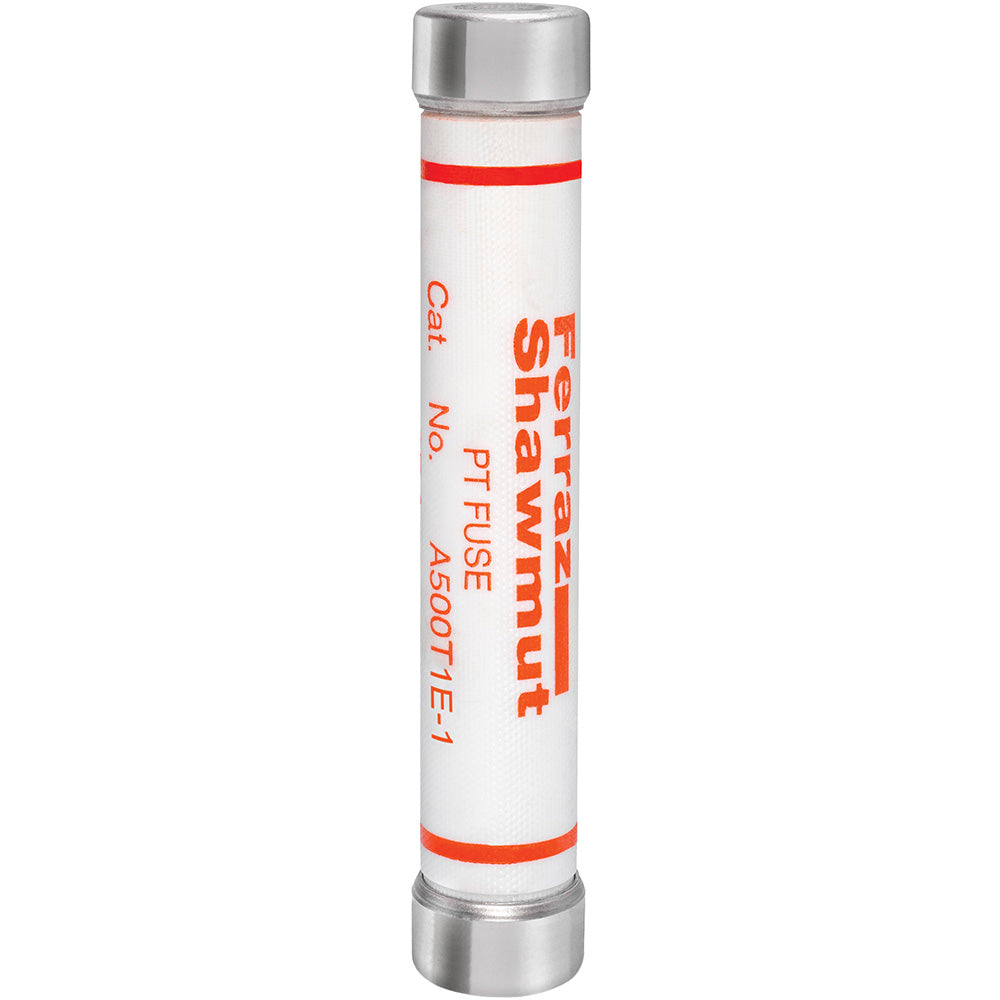

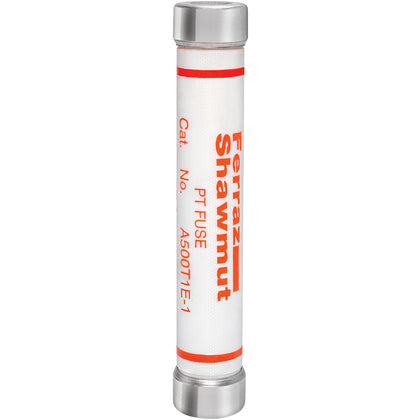

A500T1E-1 is a Mersen medium voltage potential transformer fuse rated at 1 ampere and 5,000 volts AC with a 50 kiloamp interrupt rating and ferrule mounting. A500T1E-1 features current-limiting protection for superior equipment safety, a Class E rating, and a fiberglass melamine body for durability in harsh environments. It mounts via standard clips and is non-venting for silent operation. The fuse has a compact 1 inch diameter by 5-5/8 inch length size and includes metal embossed catalog and manufacturing date for lasting identification.

Key Specifications
• Amperage: 1 A
• Voltage Rating: 5,000 VAC
• Interrupt Rating: 50 kA symmetrical
• Fuse Class: E
• Mounting Type: Ferrule, clip mount
• Body Material: Fiberglass melamine
• Type: Current limiting potential transformer fuse
• Dimensions: 1 inch diameter x 5-5/8 inch length
• Terminal Type: Ferrule
• Non-venting design for silent operation
• Metal embossed catalog number and manufacturing date

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A500T1E-1
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Amp-Trap Series
• Type : A500T
• Voltage : 5000
• Amperage : 1
• AIC rating : 80kA@5kV
• Temp Rating : -13–158 °F (-25–70 °C)
• Diameter : 1
• Class Rating : E
• Barrels : 1
• Clip Center : 5

Product Data

• UPC : 782001800734
• GTIN : 00782001800734
• Country of Origin : Mexico
• Dimensions : x 5.63 in x
• Weight : 5
• Temp Rating : -13–158 °F (-25–70 °C)
