Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A4J90

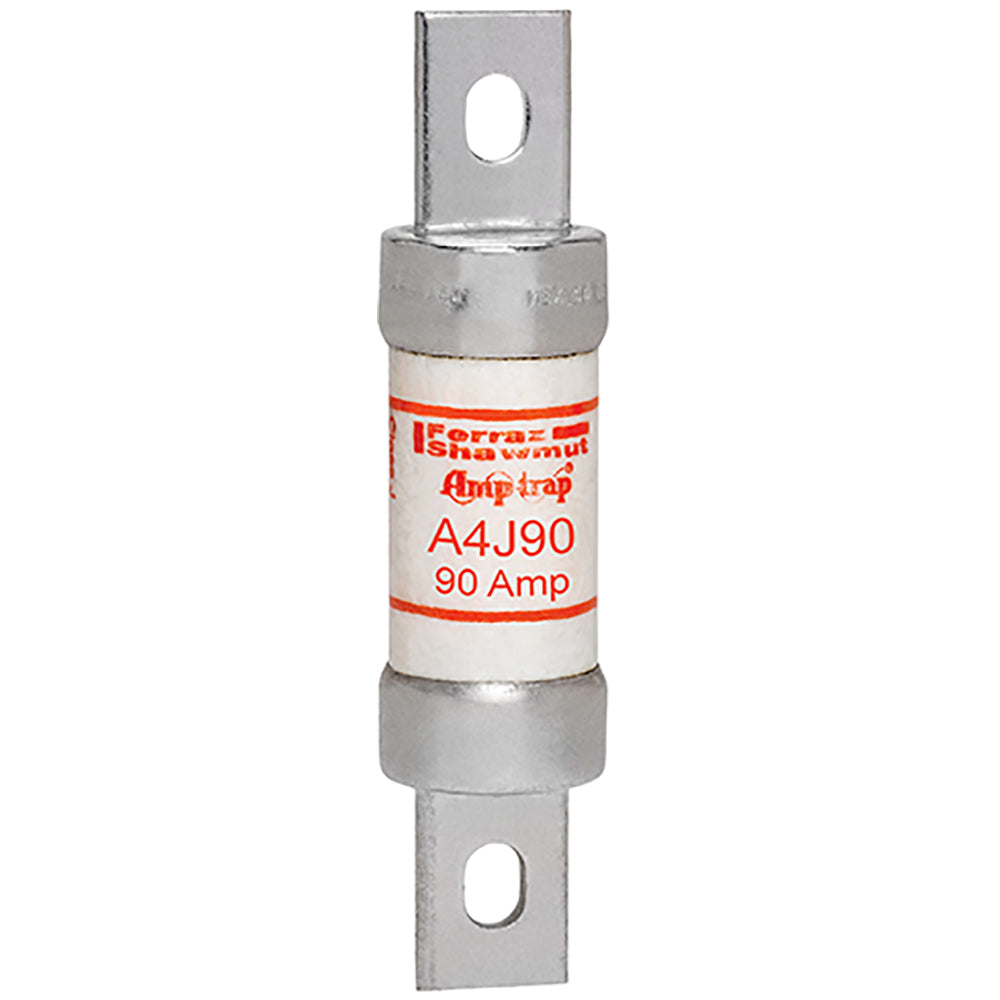

A4J90 is a 90 amp, 600 volt Class J fast-acting fuse from Ferraz Shawmut Mersen designed for reliable circuit protection.This A4J series fuse features fast-acting current limiting characteristics, suitable for low voltage applications up to 600VAC and 300VDC. It has a single pole configuration with a compact cylindrical form factor approximately 1.06 inch diameter by 4.63 inches length. The fuse is UL 248/248-8 and CSA C22.2 certified, providing a high interrupt rating of 200kA at 600V for enhanced safety and performance.
- Key Specifications
- Amperage: 90A
- Voltage Rating: 600VAC / 300VDC
- Poles: 1
- Fuse Type: Class J, Fast Acting
- Interrupt Rating: 200kA at 600V
- Series/Frame: A4J
- Dimensions: Approx. 1.06 inch diameter x 4.63 inch length
- Certifications: UL 248/248-8, CSA C22.2
- Mounting Type: Cartridge fuse
- Part Number: A4J90
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 90
- AIC rating : 200kA@600V
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
- UPC : 782001960315
- GTIN : 00782001960315
- Country of Origin : Mexico
- Dimensions : x 4.63 in x
- Weight : 0.24
