Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

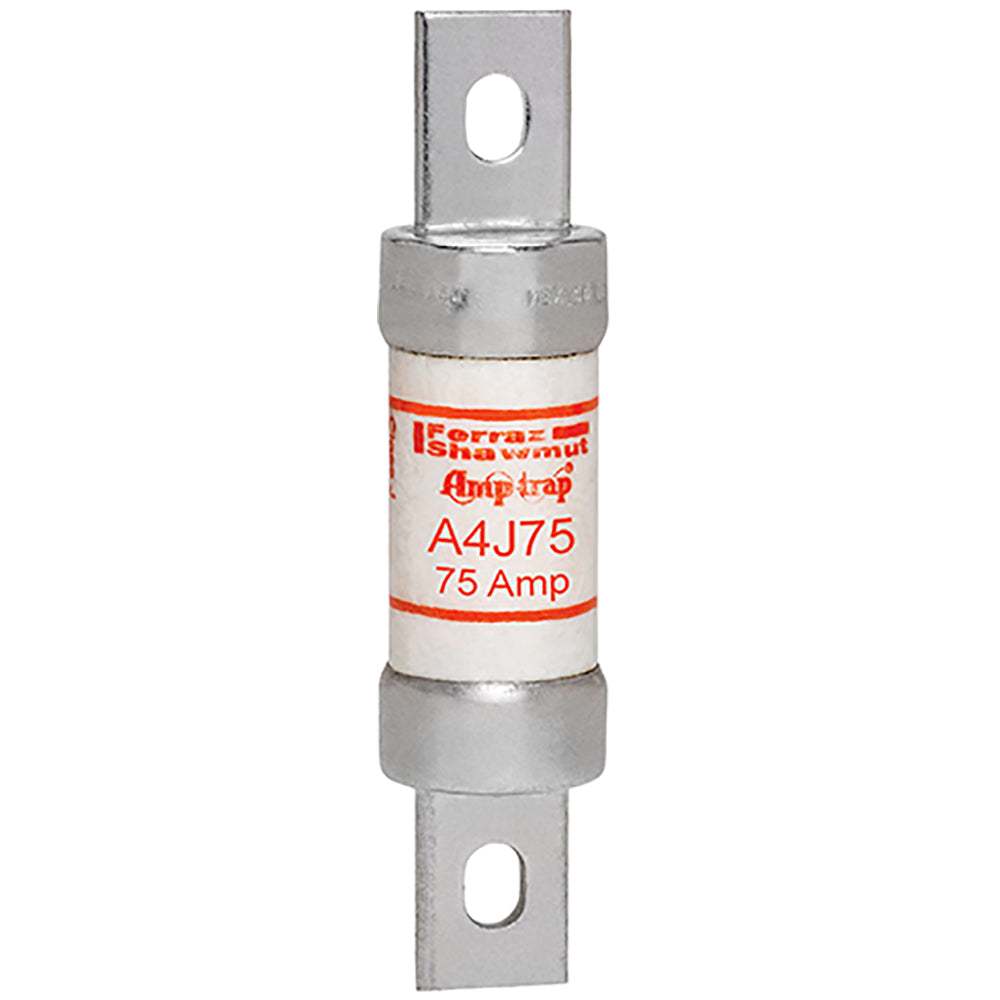

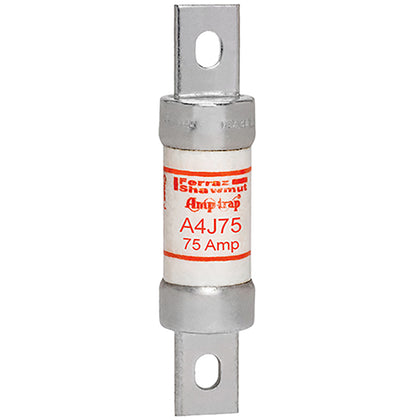

A4J75
A4J75 is a Mersen Class J fast-acting fuse rated for 600VAC and 300VDC applications with a 75-ampere current rating and blade terminal connection. This low-voltage fuse is designed for use in capacitors, load centers, panelboards, switchboards, bus duct feeder circuits, circuit breakers, and general lighting and heating loads. The A4J75 delivers very current-limiting performance with a 200 kA interrupt rating on AC and 100 kA on DC, making it suitable for demanding industrial and commercial electrical systems.
- Current Rating: 75 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class J
- Trip Speed: Fast-Acting
- Terminal Type: Blade
- Interrupt Rating: 200 kA AC / 100 kA DC
- Terminal Material: Silver-Plated Copper
- UL/CSA Certified
Specifications
- Part Number: A4J75
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 75
- AIC rating : 200kA@600V
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960292
- GTIN : 00782001960292
- Weight : 5
