Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

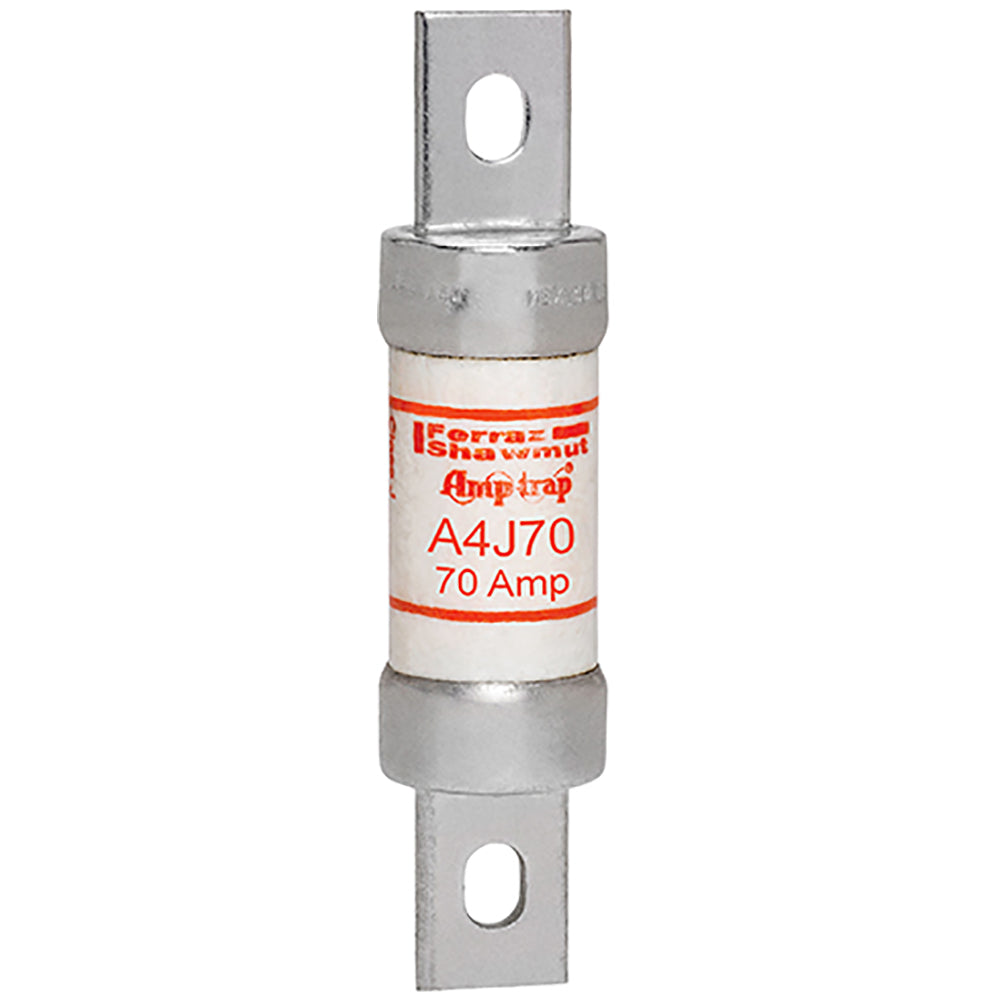

A4J70
A4J70 is a Mersen Class J fast-acting, current-limiting fuse designed for reliable low voltage circuit protection.
This cartridge blade fuse offers high current limitation for low peak let-thru current, with unique dimensions that prevent replacement by other fuse classes. It is ideal for applications requiring robust overcurrent protection and compliance with strict safety standards.
-
Key Specifications
- Amperage: 70 A
- Voltage: 600 VAC, 300 VDC
- Poles: Single
- Mounting Type: Cartridge Blade
- Interrupt Rating: 200 kA at 600 VAC, 100 kA at 300 VDC
- Series/Frame: A4J
- Trip Unit: Fast Acting
- Certifications: UL Class J
- Body Style: Cylindrical
- Terminal Material: Silver-Plated Copper
- Physical Size: 1 1/8" x 4 1/2"
- Application: Low voltage, high fault current protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A4J70
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 70
- AIC rating : 200kA@600V
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960285
- GTIN : 00782001960285
- Country of Origin : Mexico
- Dimensions : x 4.63 in x
- Weight : 0.24
