Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

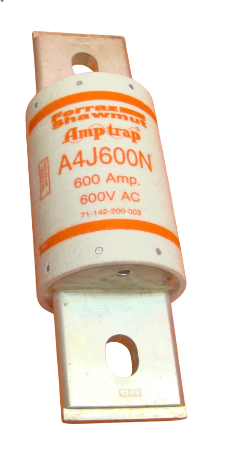

A4J600N
A4J600N is a Class J fast-acting fuse rated for 600VAC/300VDC at 600A, delivering excellent current-limiting protection for industrial and commercial power distribution applications. A4J600N Amp-Trap fuses feature unique dimensions that prevent substitution of lower-rated fuses, with a 200kA AC interrupt rating and 100kA DC interrupt rating. These blade-mounted cartridge fuses are constructed with GMG insulating material and brass alloy terminals, suitable for use in load centers, panelboards, switchboards, bus duct, feeder circuits, and general loads.
- Amperage Rating: 600A
- Voltage Rating: 600VAC / 300VDC
- Fuse Class: Class J
- Speed: Fast-Acting
- Interrupt Rating: 200kA AC / 100kA DC
- Terminal Type: Blade
- Mounting: Clip
- Body Material: GMG
- Terminal Material: Brass Alloy
- Product Dimensions: 2.5 in diameter x 8 in length
- Weight: 3.02 lb
- Certifications: UL 248-8, CSA C22.2 No. 248.8, IEC 269-2-1, RoHS Compliant
Specifications
- Part Number: A4J600N
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Class Rating : J
- Velocity : FA - Fast Acting
Product Data
- UPC : 78200196072
- GTIN : 00782001960728
- Weight : 3
