Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A4J60

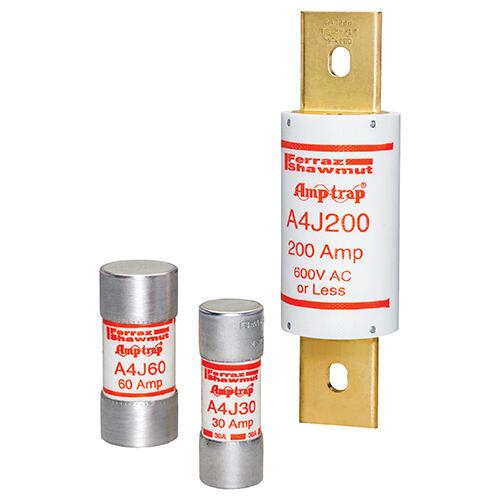

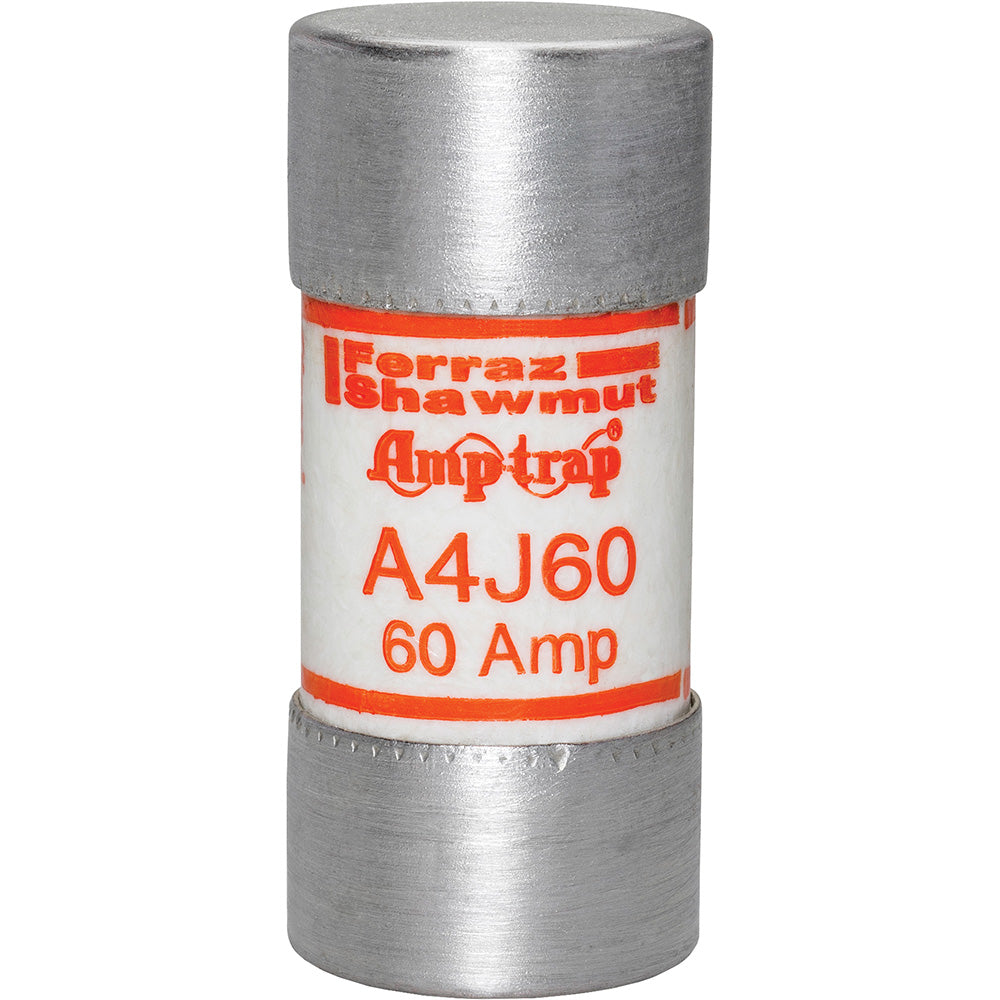

A4J60 is a Mersen Class J current limiting fast acting fuse designed for low voltage applications.This fuse features a 60 ampere rating and a voltage rating of 600 VAC/300 VDC. It has a cylindrical body with unique dimensions to prevent replacement by other fuse classes. The A4J60 provides high current limitation for low peak let-thru current, ensuring enhanced protection in industrial environments. It is UL listed and CSA certified with an interrupt rating of 200 kA AC and 20 kA DC.
- Key Specifications
- Manufacturer: Mersen
- Part Number: A4J60
- Amperage: 60 Amp
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: Class J
- Interrupt Rating: 200 kA AC / 20 kA DC
- Body Type: Cylindrical
- Fast Acting, Current Limiting
- UL Listed and CSA Certified
- Dimensions: 2-3/8 inch length, 1-1/16 inch diameter
Specifications
- Part Number: A4J60
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 1.06
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960261
- GTIN : 00782001960261
- Country of Origin : Mexico
- Dimensions : x 2.38 in x
- Weight : 0.17
