Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

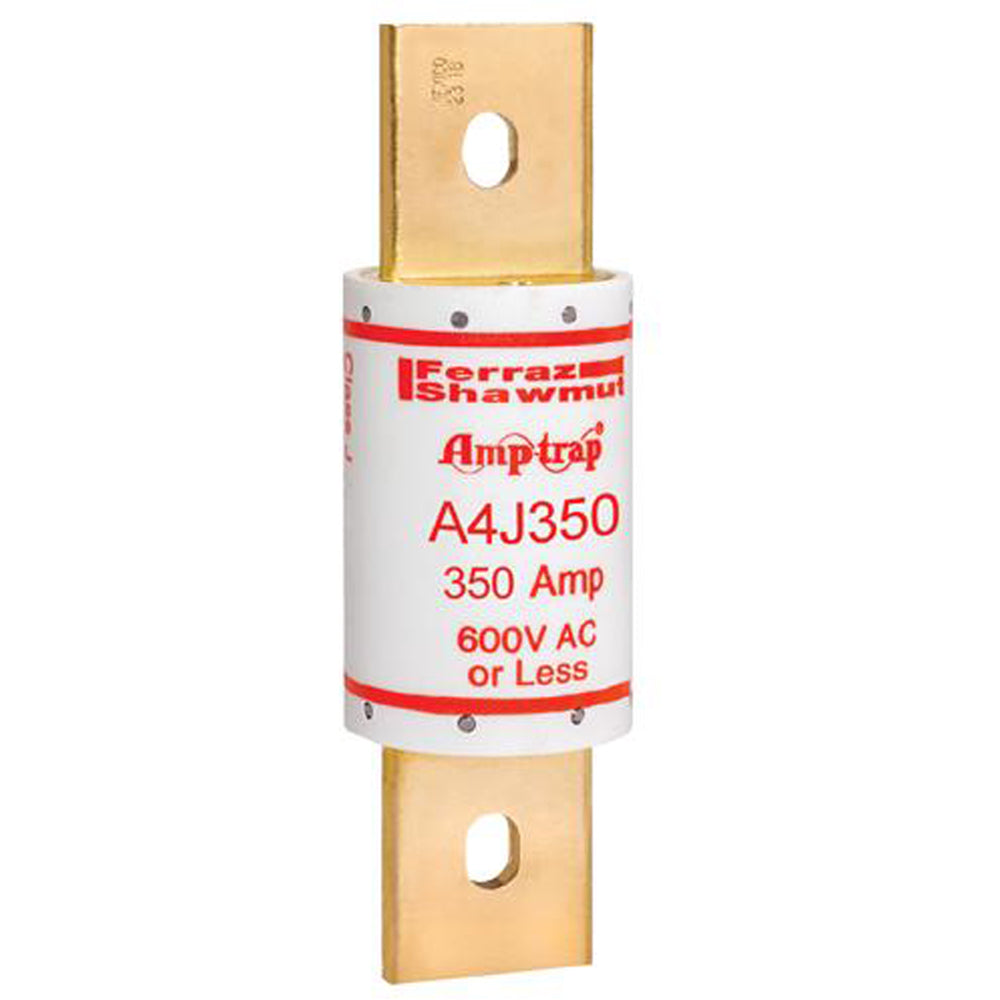

A4J350
A4J350 is a Mersen Class J fast-acting fuse rated for 350 amps and 600 volts AC, designed for reliable current-limiting protection.This fuse features a blade terminal type with clip mounting and a fiberglass body for dimensional stability in harsh environments. It has a high interrupt rating of 200,000 AIC at 600 VAC and 100,000 AIC at 300 VDC, ensuring excellent protection for industrial applications. The fuse is UL listed to standard 248-8, CSA certified, and IEC compliant.
- Key Specifications
- Fuse Class: Class J
- Amperage Rating: 350 Amp
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200,000 AIC (AC), 100,000 AIC (DC)
- Speed/Characteristic: Fast-Acting
- Mounting Type: Clip
- Terminal Type: Blade
- Body Material: Fiberglass (GMG)
- Connection Material: Brass Alloy
- Certifications: UL 248-8, CSA C22.2, IEC 269-2-1
Specifications
- Part Number: A4J350
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Diameter : 2.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960438
- GTIN : 00782001960438
- Country of Origin : Mexico
- Dimensions : x 7.13 in x
- Weight : 3
