Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A4J3

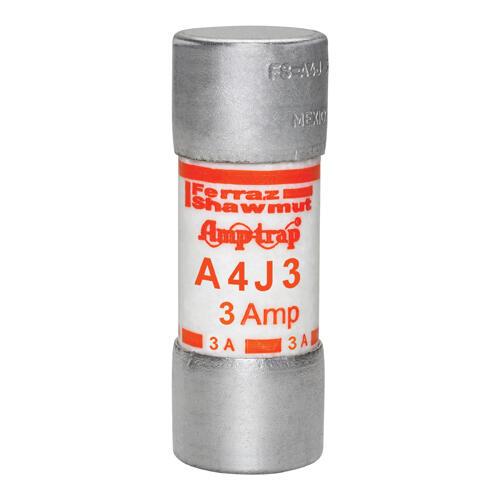

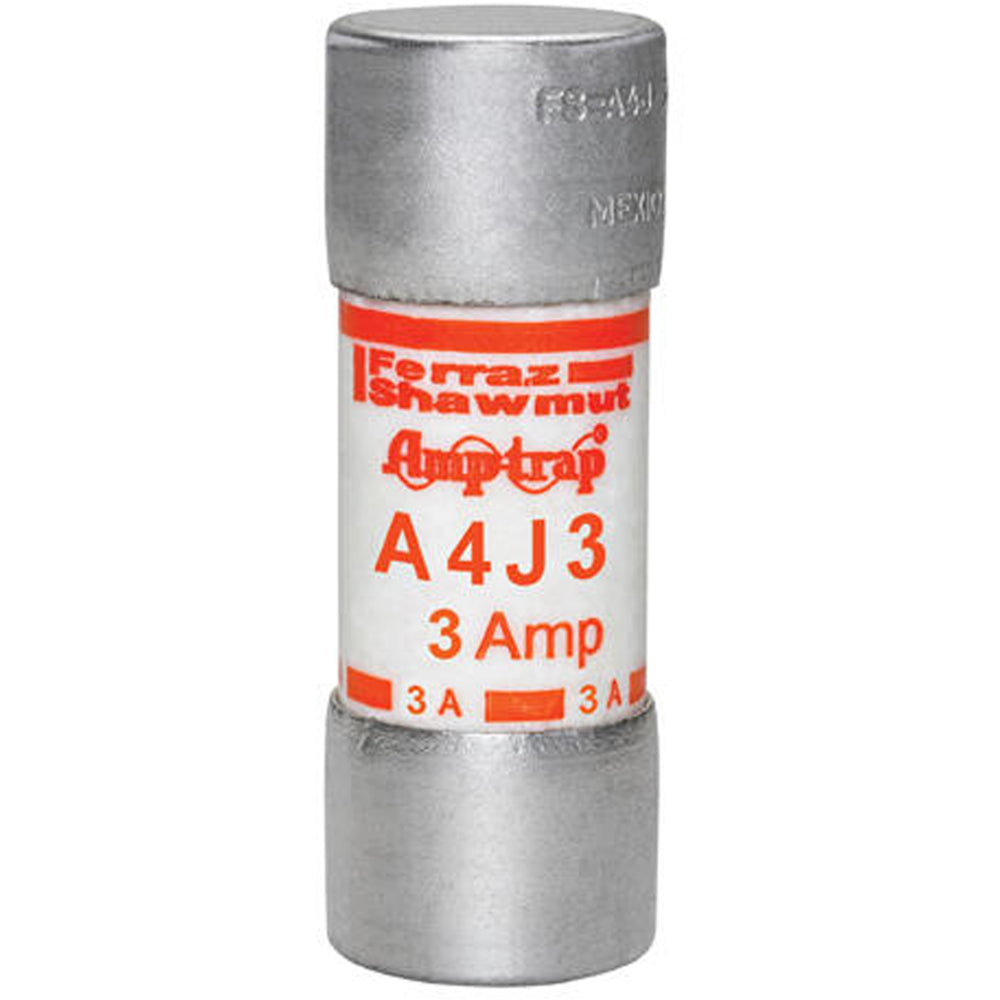

A4J3 is a 3 Amp, 600 Volt AC Class J fast acting fuse by Mersen Ferraz Shawmut designed for high current limitation and reliable circuit protection.This fuse features a very current limiting design with a 200,000 AIC AC interrupt rating and 100,000 AIC DC interrupt rating. It is UL listed to standard 248-8 and CSA certified, with a compact size of 13/16" x 2 1/4". The fuse includes a ferrule terminal type and clip mounting for easy installation and replacement.
- Key Specifications
- Amperage: 3 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: J
- Interrupt Rating: 200,000 AIC AC / 100,000 AIC DC
- Fuse Type: Fast Acting
- Mounting Type: Clip
- Terminal Type: Ferrule
- Dimensions: 13/16" x 2 1/4"
- Certifications: UL Listed, CSA Certified
- Manufacturer: Mersen (Ferraz Shawmut)
- Part Number: A4J3
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- UPC : 782001960063
- GTIN : 00782001960063
- Country of Origin : Mexico
- Dimensions : x 2-1/2 in x
- Weight : 0.12
