Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

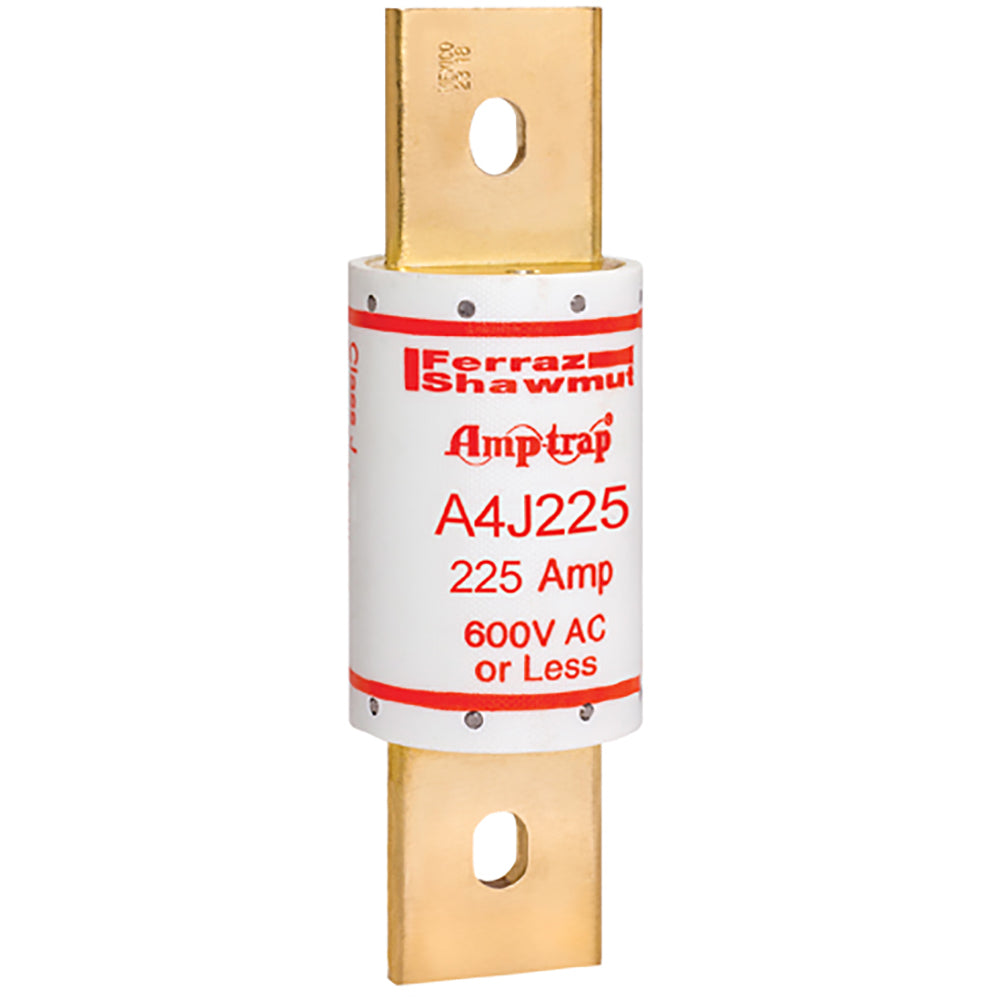

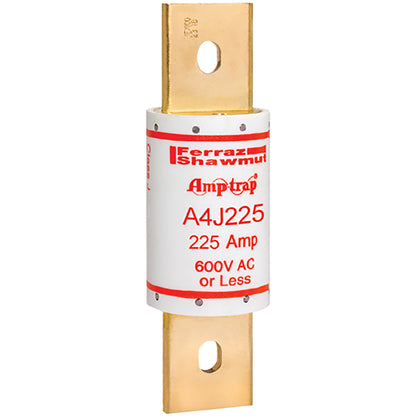

A4J225
A4J225 is a Mersen fast-acting Class J fuse rated for 225 amps, 600VAC, and 300VDC, designed for reliable current-limiting protection.This fuse features a clip mounting type and provides high interrupting ratings of 200kA at 600VAC and 100kA at 300VDC. It is part of the Amp-Trap® A4J series, known for its compact dimensions and fast-acting response to overcurrent conditions, ensuring equipment safety and minimizing downtime.
- Key Specifications
- Amperage: 225A
- Voltage Rating: 600VAC / 300VDC
- Fuse Type: Class J
- Speed: Fast Acting
- Mounting Type: Clip
- Interrupting Rating: 200kA AC / 100kA DC
- Series: Amp-Trap® A4J
- Terminal Material: Brass Alloy
- Blade Terminal Connection
- Certifications: UL Listed
- Part Number: A4J225
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Diameter : 2.13
- Class Rating : J
- Barrels : 1
- UPC : 782001960384
- GTIN : 00782001960384
- Weight : 2
