Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

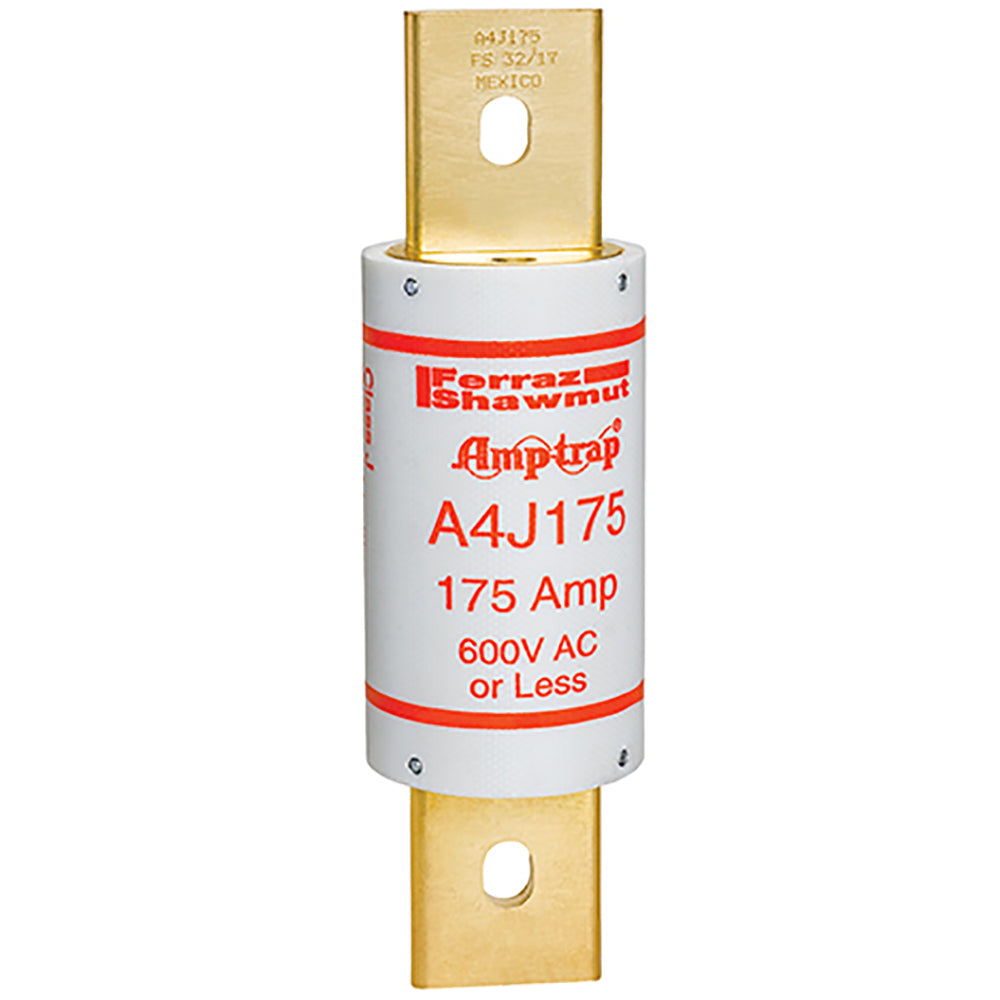

A4J175
A4J175 is a 175A, 600V AC, Class J, fast-acting, current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This Mersen Ferraz Shawmut Amp-Trap series fuse features a fiberglas body, unique dimensions to prevent incorrect replacement, and high current-limiting capability for low peak let-thru current. It is UL listed and CSA certified for safety and compliance.
- 175 Ampere Rating
- 600 Volt AC Voltage Rating
- 300 Volt DC Voltage Rating
- Class J Fuse Type
- Fast-Acting
- Current Limiting
- 200,000 AIC Interrupting Rating (AC)
- 100,000 AIC Interrupting Rating (DC)
- UL 248/248-8 Listed
- CSA C22.2 No. 248.8 Certified
- IEC 269-2-1 Compliant
- Physical Size: 1 5/8" x 5 3/4"
Specifications
- Part Number: A4J175
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 175
- AIC rating : 200kA@600V
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960360
- GTIN : 00782001960360
- Country of Origin : Mexico
- Dimensions : x 5-3/4 in x
- Weight : 0.8
