Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A4J15

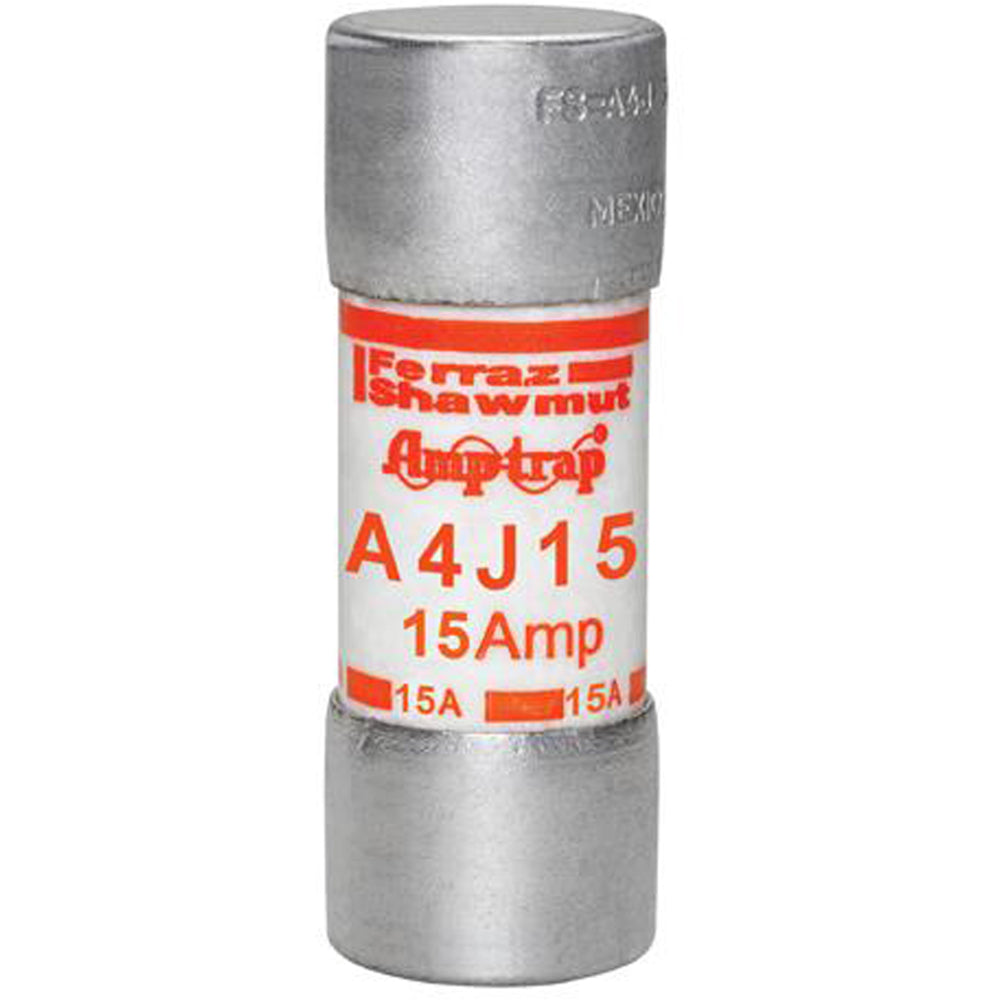

A4J15 is a Mersen Class J fast-acting fuse rated for 15 amps and 600 volts AC, designed for reliable current-limiting protection.This fuse features a cylindrical PolyTube body with unique dimensions to prevent substitution by lower-rated fuses. It provides high current limitation with a 200,000 A interrupt rating at 600 VAC and 100,000 A at 300 VDC. The fuse has ferrule terminals for clip mounting and is UL listed, CSA certified, and compliant with IEC standards. It is suitable for use in capacitors, panelboards, switchboards, bus ducts, feeder circuits, and general loads.
- Key Specifications
- Current Rating: 15 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class J
- Speed: Fast-Acting
- Interrupt Rating: 200 kA AC / 100 kA DC
- Mounting Type: Clip
- Terminal Type: Ferrule, Tin-Plated Copper
- Body Material: PolyTube
- Certifications: UL Listed (File E2137), CSA Certified, IEC 269-2-1
- Dimensions: 13/16" diameter x 2 1/4" length
Specifications
- Part Number: A4J15
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960155
- GTIN : 00782001960155
- Weight : 0.12
