Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A4J100

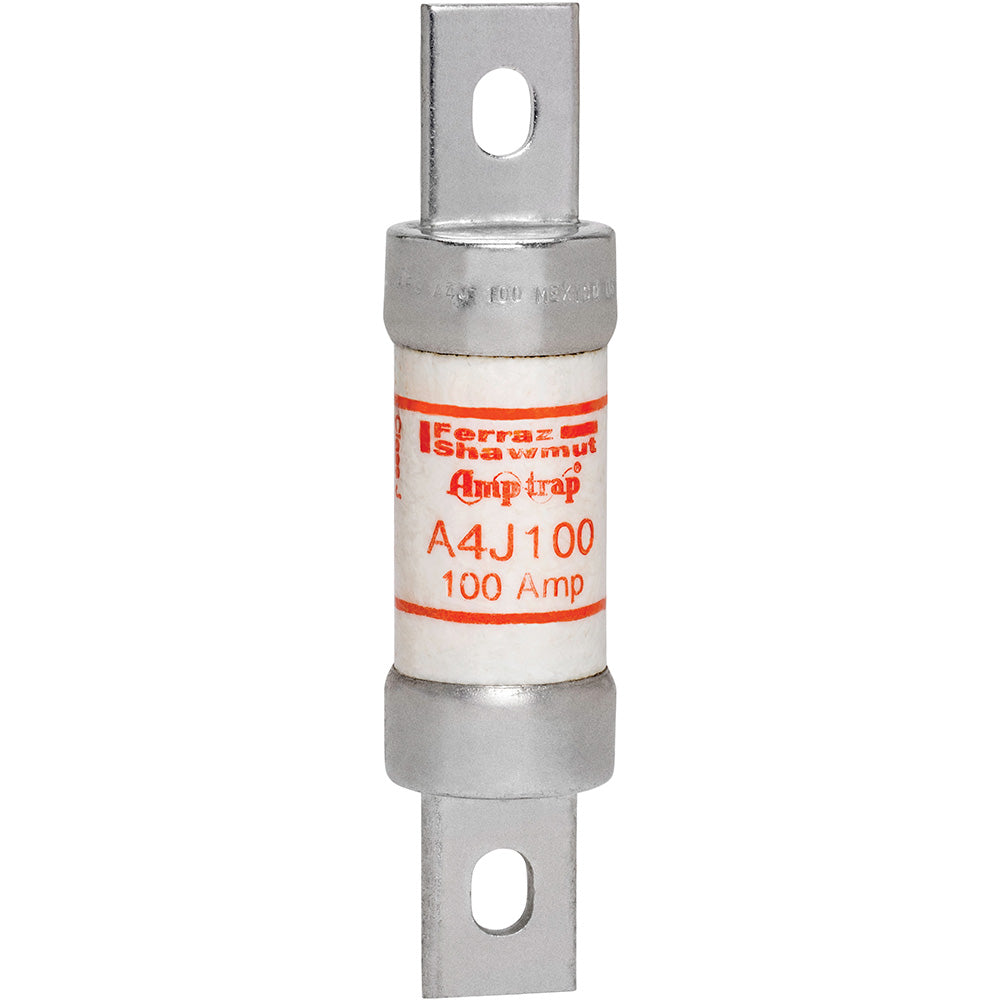

A4J100 is a Mersen Class J current limiting fast acting fuse designed for reliable circuit protection.A4J100 features a 100 ampere rating and 600 VAC voltage rating with 300 VDC capability, offering high current limitation and low peak let-thru current. It has a cylindrical body with blade terminals and silver-plated copper construction, ensuring durability and ease of installation. This fuse prevents replacement by other fuse classes due to its unique dimensions and meets UL Class J standards.
- Manufacturer: Mersen
- Part Number: A4J100
- Amperage: 100 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: J
- Type: Current Limiting Fast Acting
- Interrupt Rating: 200 kA AC / 100 kA DC
- Mounting Type: Blade Terminal
- Body Style: Cylindrical
- Terminal Material: Silver-Plated Copper
- Dimensions: Approximately 1 1/8" x 4 1/2"
- Certifications: UL Listed Class J
Specifications
- Part Number: A4J100
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4J
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782001960322
- GTIN : 00782001960322
- Country of Origin : Mexico
- Dimensions : x 4.63 in x
- Weight : 0.24
