Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A4BY900

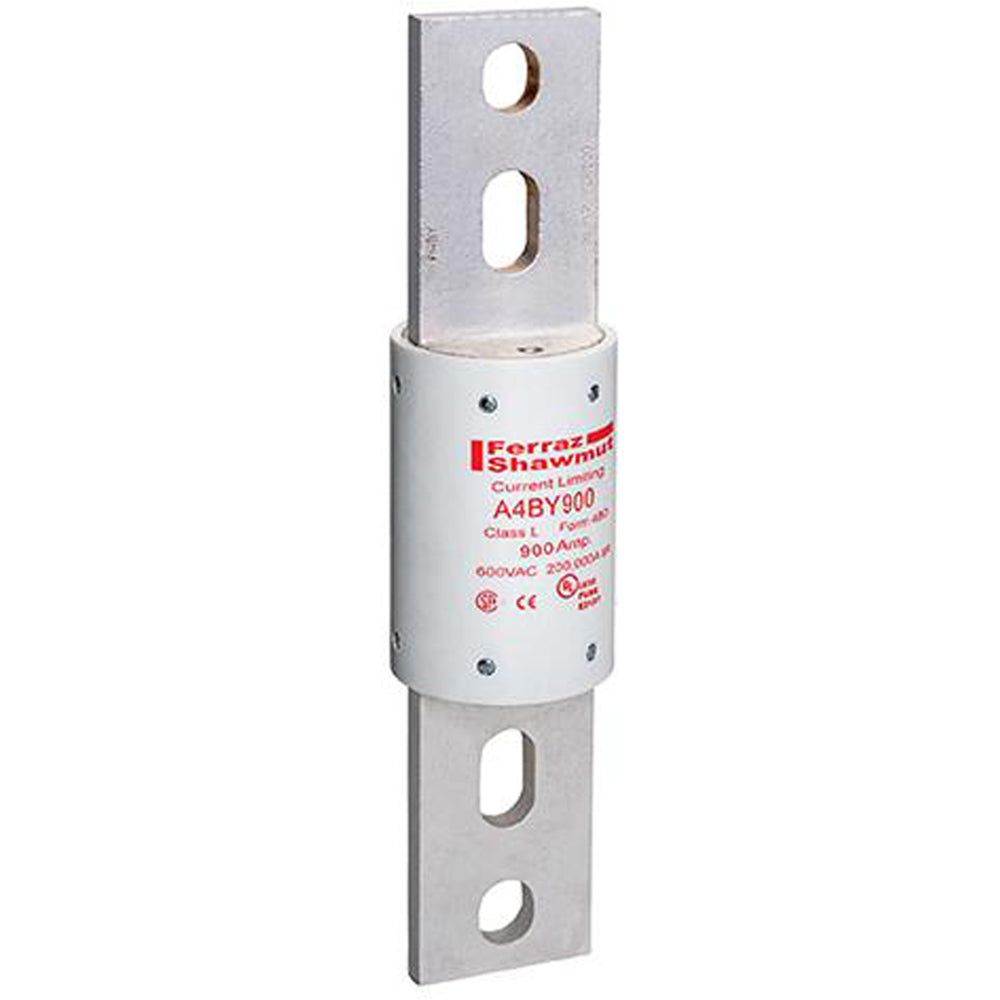

A4BY900 is a Class L time delay power fuse by Ferraz Shawmut Mersen rated for 900 amps and 600 VAC voltage with bolt-on mounting.This fuse features a 4-second minimum time delay at 500% rating to allow normal current surges and coordination with ground fault relays. It has a blade terminal connection and an interrupt rating of 200 kA at 600 VAC. The A4BY900 is UL 248-10 and CSA certified, suitable for protecting mains, feeders, circuit breakers, load centers, panelboards, switchboards, and metering centers.
- Key Specifications
- Amperage: 900 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: Class L
- Type: Time Delay
- Interrupt Rating: 200 kA
- Mounting Type: Bolt-On
- Terminal Connection: Blade
- Poles: 1
- Certifications: UL 248-10, CSA C22.2 No. 248.10
- Series: A4BY
- Part Number: A4BY900
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AKR Series
- Type : A4BY
- Voltage : 600
- Amperage : 900
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
- UPC : 782001939137
- GTIN : 00782001939137
- Weight : 5
