Description

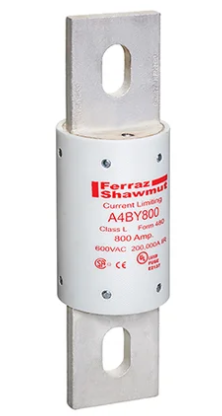

A4BY800-55AL
A4BY800-55AL is an Eaton Class L time delay fuse rated for 800 Amps and 600 Volts AC, designed for reliable circuit protection in industrial applications. This fuse features current limiting and a 4-second time delay for enhanced performance.The A4BY800-55AL fuse has a 200,000 AIC interrupt rating at 600 VAC and 100,000 AIC at 300 VDC. It is UL listed to standard 248-10 and CSA certified, with a glass melamine body and plated terminals for durability in harsh environments. Its unique dimensions prevent replacement by other fuse classes, ensuring proper fit and safety.
- Key Specifications
- Amperage: 800 Amps
- Voltage Rating: 600 Volts AC, 300 Volts DC
- Interrupt Rating: 200,000 AIC AC, 100,000 AIC DC
- Fuse Class: L
- Time Delay: 4 seconds
- Mounting Type: Blade
- Body Material: Glass Melamine
- Certifications: UL Listed, CSA Certified
- Physical Size: 2.5" x 7.38"
- Current Limiting Feature
Specifications
- Part Number: A4BY800-55AL
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Fuse Part
- Family : Amp-Trap
- Voltage : 600
- Amperage : 800
- AIC rating : 200kA@600V
Product Data
- UPC : 078200193760
- Weight : 0.15
