Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

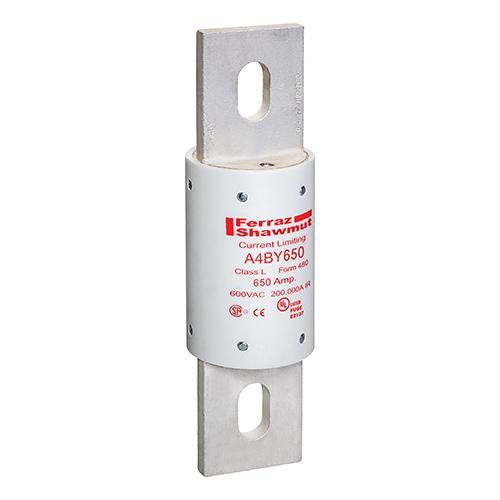

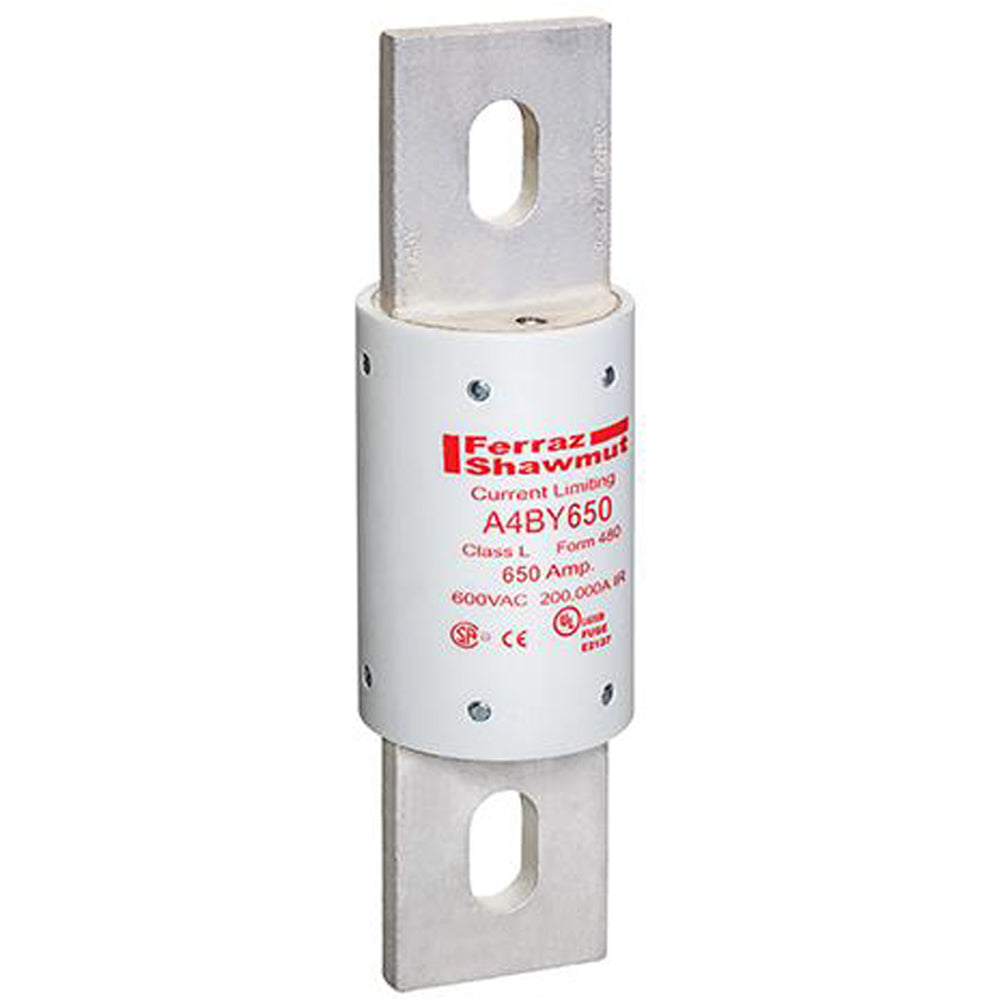

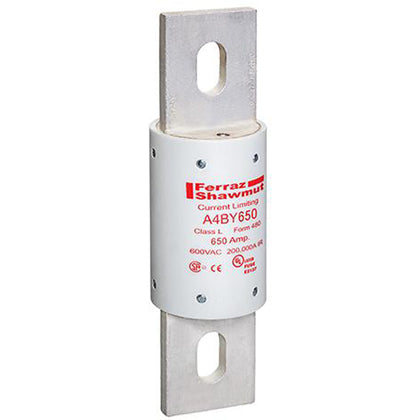

A4BY650
A4BY650 is a Class L time-delay fuse from Mersen Ferraz Shawmut designed for reliable circuit protection in industrial applications.This fuse features a 650 ampere rating with a voltage rating of 600VAC and 300VDC. It is a single-pole fuse with a high interrupting rating of 200kA at 600VAC and 100kA at 300VDC, ensuring safe interruption of fault currents. The A4BY series fuse is UL Class L certified and designed for use with compatible fuse blocks and holders. It provides time-delay protection suitable for motor circuits and other inductive loads.
- Key Specifications
- Manufacturer: Mersen, Ferraz Shawmut
- Part Number: A4BY650
- Fuse Type: Class L Time-Delay
- Current Rating: 650 Amps
- Voltage Rating: 600VAC / 300VDC
- Poles: 1 Pole
- Interrupting Rating: 200kA at 600VAC, 100kA at 300VDC
- Mounting Type: Blade (Amp-Trap® style)
- Certifications: UL Class L
- Part Number: A4BY650
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AKR Series
- Type : A4BY
- Voltage : 600
- Amperage : 650
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
- UPC : 782001939083
- GTIN : 00782001939083
- Weight : 3.95
- Certification : UL, CSA, IEC, CE
