Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
A4BY450

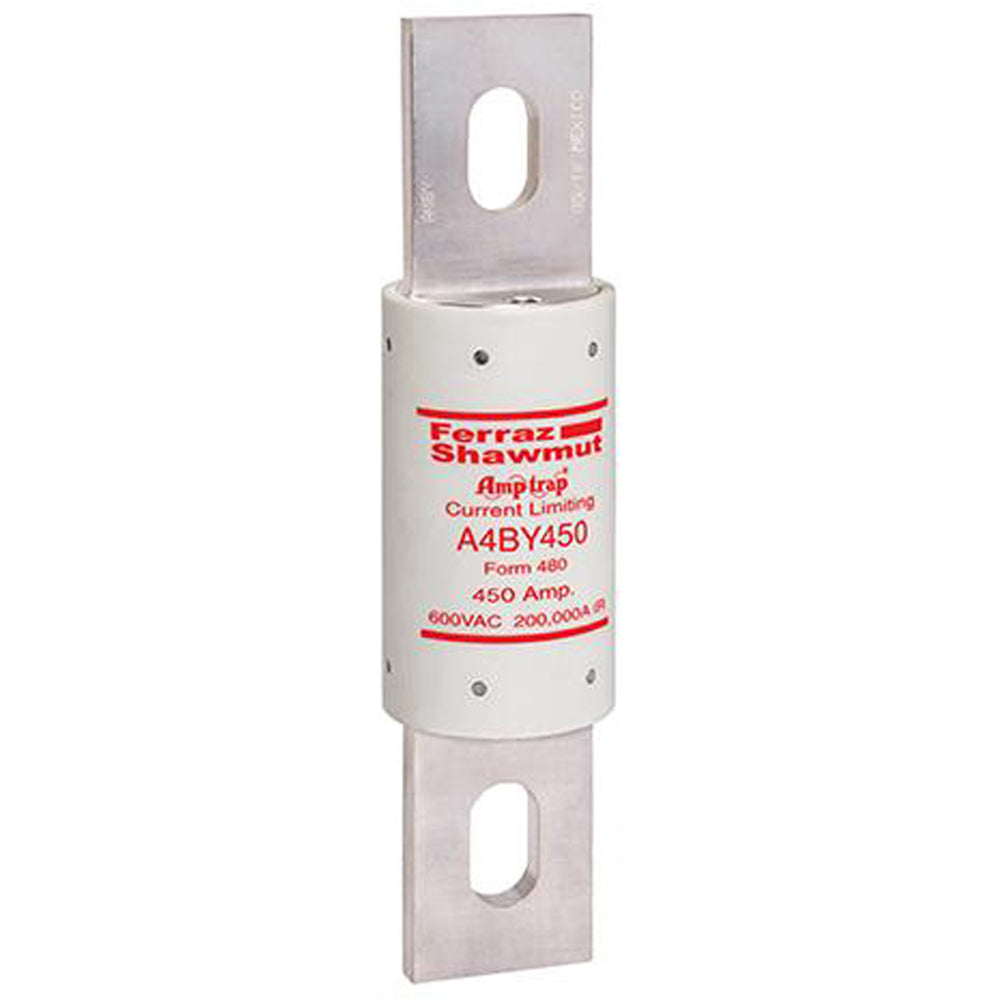

A4BY450 is a Class L time delay fuse rated for 450 amperes at 600 volts AC and 300 volts DC, designed for current-limiting protection in industrial power distribution systems.
This Mersen fuse features a blade terminal design with a 4-second time delay characteristic, making it suitable for circuits with inrush currents. The fuse body is constructed with glass melamine and plated terminals for durability in harsh environments. It meets UL standard 248-10 and is CSA certified to C22.2 No. 248.10, with self-certification for DC applications per UL248.
- Amperage Rating: 450 A
- AC Voltage Rating: 600 VAC
- DC Voltage Rating: 300 VDC
- Fuse Class: Class L
- Speed Characteristic: Time Delay
- AC Interrupting Rating: 200,000 AIC
- DC Interrupting Rating: 100,000 AIC
- Physical Size: 2 x 8 5/8 inches
- Terminal Type: Blade
- Frequency: 50/60 Hz
- UL Listed to Standard 248-10 (601-6000A)
- CSA Certified to Standard C22.2 No. 248.10
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A4BY450
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : AKR Series
- Type : A4BY
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Diameter : 2
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 078200193899
- GTIN : 00782001938994
- Weight : 3
- Certification : UL, CSA
