Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A4BY2000

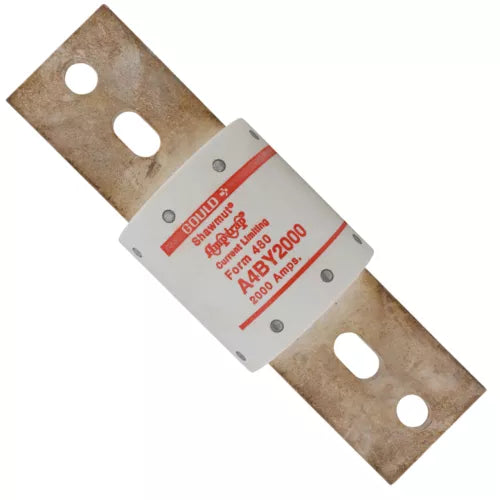

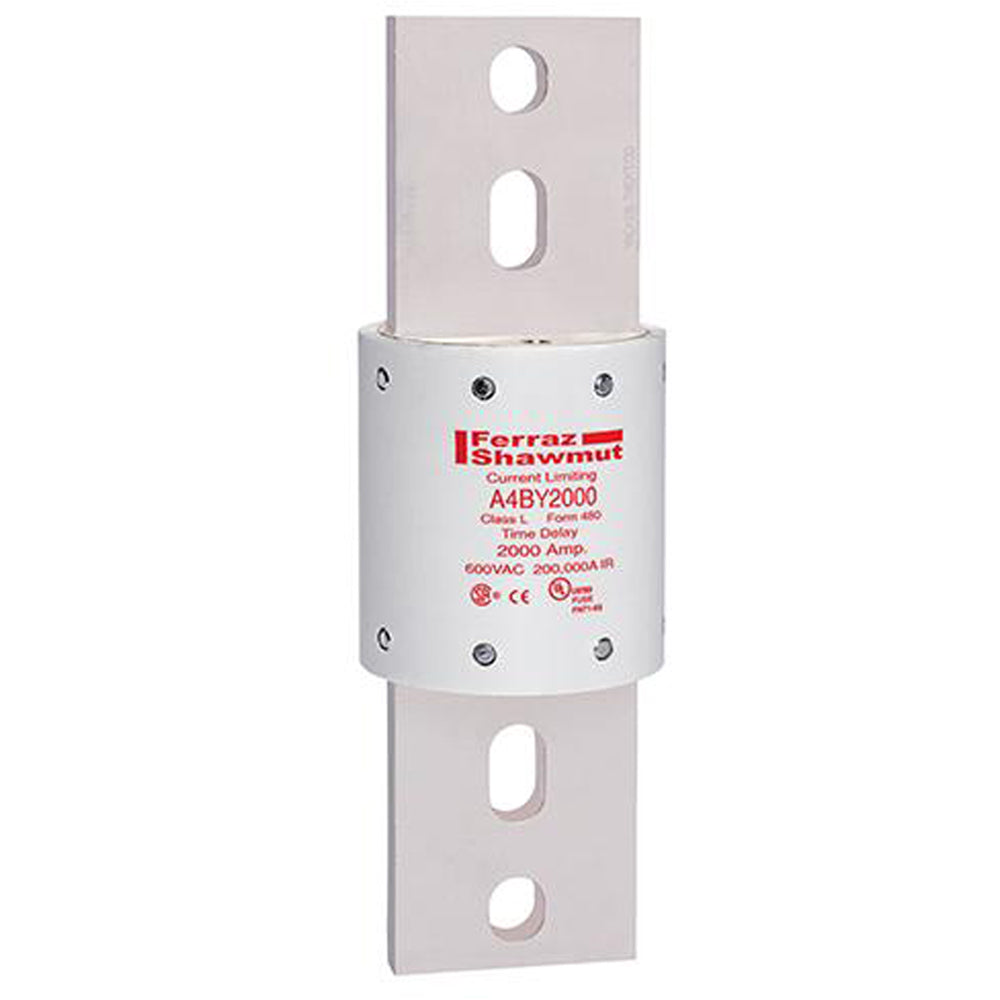

A4BY2000 is a Mersen Class L time delay fuse rated for 2000 Amps and 600 Volts AC, designed for bolted mounting applications.This fuse features a 4-second minimum time delay at 500% rating, current limiting capability, and is suitable for mains, feeders, circuit breakers, load centers, panelboards, switchboards, and metering centers. It has a cylindrical glass melamine body with plated terminals for harsh environments and a blade connection type. The A4BY2000 fuse has an interrupting rating of 200,000 AIC at 600VAC and 100,000 AIC at 300VDC. It is UL listed to standard 248-10 and CSA certified, ensuring compliance with safety standards.
- Amperage: 2000 Amps
- Voltage: 600VAC, 300VDC
- Class: L Time Delay
- Interrupting Rating: 200kA AC, 100kA DC
- Mounting Type: Bolted
- Connection Type: Blade
- Body Material: Glass Melamine
- Dimensions: 3.5" diameter x 10.75" length
- UL Listed (File E2137)
- CSA Certified (C22.2 No. 248.10)
- 4-second minimum time delay at 500% rating
Specifications
- Part Number: A4BY2000
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AKR Series
- Type : A4BY
- Voltage : 600
- Amperage : 2000
- AIC rating : 200kA@600V
- Diameter : 3.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001939236
- GTIN : 00782001939236
- Country of Origin : Mexico
- Dimensions : x 10-3/4 in x
- Weight : 10
- Certification : CSA, UL
