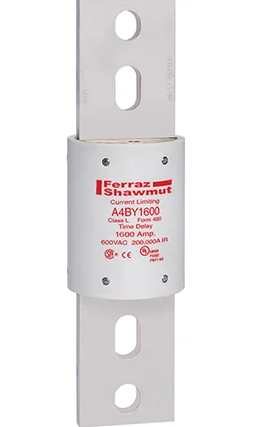

A4BY1600-55BG - Mersen 1600A 600V Class L Time Delay Fuse 200kA Interrupt Rating

A4BY1600-55BG

A4BY1600-55BG is a Mersen Class L time-delay fuse rated for 1600 amps and 600 volts AC with a 200,000 AIC interrupt rating.

This fuse features a 4-second time delay and current limiting design, suitable for low voltage applications up to 600 VAC and 300 VDC. It has a blade-style mounting with a physical size of 3 inches diameter by 10 3/4 inches length. The fuse body is made of glass melamine with plated terminals for durability in harsh environments. It is UL listed to standard 248-10 and CSA certified, ensuring compliance with safety standards.

• Amperage: 1600 Amps
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Class L, Time Delay
• Interrupt Rating: 200,000 AIC AC, 100,000 AIC DC
• Physical Size: 3" diameter x 10 3/4" length
• Blade-style mounting
• Glass melamine body with plated terminals
• UL Listed to standard 248-10
• CSA Certified to standard C22.2 No. 248.10
• Current limiting design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A4BY1600-55BG
• Manufacturer : Mersen
• Brand : Ferraz Shawmut
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A4BY
• Voltage : 600
• Amperage : 1600
• AIC rating : 200kA@600V

Product Data

• Weight : 5
