Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A4BY1600-55AL

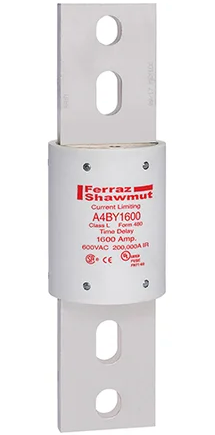

A4BY1600-55AL is a Mersen Amp-Trap Class L time-delay fuse rated for 1600 amperes at 600VAC and 300VDC, designed for low-voltage power distribution and industrial applications requiring current-limiting protection. This cylindrical body fuse features a 4-second minimum time delay at 500 percent rating, allowing it to be applied at continuous currents up to its full ampere rating while providing reliable overcurrent protection. The fuse is 100 percent rated and suitable for use in distribution systems where coordinated protection and selective clearing are essential.
- Current Rating: 1600 Amperes
- Voltage Rating: 600VAC / 300VDC
- Interrupt Rating: 200kA at 600VAC, 100kA at 300VDC
- Fuse Class: L (Class L)
- Type: Time-Delay (Dual-Element)
- Body Style: Cylindrical
- Form Factor: 480
- Series: Amp-Trap
- Time Delay: 4-second minimum at 500% rating
- UPC: 782001939205
Specifications
- Part Number: A4BY1600-55AL
- Manufacturer : Mersen
- Brand : Ferraz Shawmut
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A4BY
- Voltage : 600
- Amperage : 1600
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Barrels : 1
Product Data
- UPC : 78200193763
- GTIN : 00782001937638
- Weight : 5
